Description

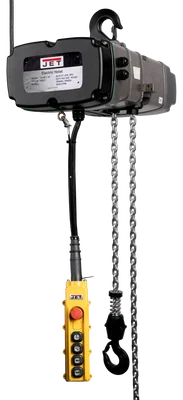

Jet TS050-020 3PH 1/2-Ton Electric Hoist w/ 20′ Lift (140235) is a reliable and powerful electric hoist designed for efficient material handling in industrial settings. Engineered with safety and performance in mind, this hoist offers a lifting capacity of 500 pounds and a lift height of 20 feet.
KEY FEATURES AND BENEFITS
- Enhanced Safety: The two-in-one mechanical brake and overload protection work together to prevent accidents and protect the hoist. The patented gear limit switch instantly cuts power in case of overlifting, while the DC motor brake ensures safety during power failures.
- Precise Control: The two-speed motor allows for accurate lifting and lowering of loads. The 5 pocket chain sprocket reduces vibration and chain wear for smoother operation.
- Durability: Built to withstand harsh environments, the IP55 TEFC motor and IP65 rated pendant control offer long-lasting performance. The built-in heat protection safeguards the unit from overheating.
SPECIFICATIONS
- Capacity: 1/2 ton (500 lbs)
- Lift height: 20 feet
- Motor: 1.5 HP, 230V, 3 phase
- Lifting speed: 33/8 feet per minute
- Duty cycle: 40/20
- Dimensions: 26.77 x 19.68 x 23.62 inches
- Weight: 125 lbs
HOW TO USE
- Inspect: Before each use, check the hoist for any visible damage to the chain, hook, or other components.
- Power Supply: Connect the hoist to a reliable 230V, 3-phase power source.
- Load Attachment: Securely attach the load to the hoist hook, ensuring proper weight distribution.
- Lifting: Use the pendant control to gradually lift the load to the desired height.
- Lowering: Carefully lower the load by using the pendant control.
- Power Off: After use, disconnect the hoist from the power source and store it in a dry, protected area.
BENEFITS OF USING JET TS050-020 3PH 1/2-TON ELECTRIC HOIST W/ 20′ LIFT (140235):
- Increased productivity: Efficient material handling saves time and labor.
- Improved workplace safety: Multiple safety features protect both operators and equipment.
- Durable construction: Ensures long-lasting performance in demanding environments.
- Precise control: Allows for accurate load placement and handling.
- Time and labor savings: Compared to manual lifting, this electric hoist significantly reduces physical effort and time.
FEATURES
- Two-in-one mechanical brake and overload protection
- Patented gear limit switch
- DC motor brake
- Two-speed motor
- IP55 TEFC motor
- 5 pocket chain sprocket
- IP65 rated pendant control
- Built-in heat protection
- 10 ft power supply cord
