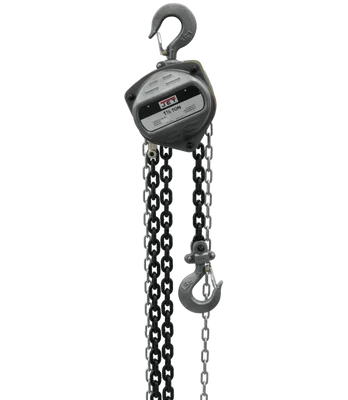

Jet S90-150-30 1.5 Ton Chain Hoist With 30ft Lift (101923)

Description

The Jet S90-150-30 1.5 Ton Chain Hoist With 30ft Lift (101923) is a robust hand chain hoist designed for efficient and safe lifting in light-duty industrial settings. Built with durability in mind, this hoist features all-steel construction and is equipped with safety features to ensure reliable performance.

KEY FEATURES AND BENEFITS:

• Reliable and Durable: All-steel construction, heat-treated load plates, and grade 80 load chain ensure long-lasting performance.
• Safe Operation: Weston-style double ratchet pawl brake, alloy steel hooks, and overload indication provide security.
• Efficient Lifting: Needle bearings reduce friction for smoother operation.
• Compact Design: Ideal for low headroom applications and confined spaces.

SPECIFICATIONS:

• Capacity: 1-1/2 ton (3307 lbs)
• Lift Height: 30 feet
• Headroom: 17-1/2 inches
• Load Chain Diameter: 7mm
• Required Hand Chain to Lift Load 1′: 58 feet
• Required Pounds of Pull to Lift Capacity: 82 pounds
• Dimensions: 8.5″ H x 11″ W x 15″ L
• Net Weight: 68 pounds

HOW TO USE:

1. Inspect the hoist: Check for any visible damage, wear, or missing parts before use.
2. Attach the load hook: Securely hook the load to the hoist’s load hook, ensuring it is properly aligned.
3. Operate the hand chain: Pull the hand chain to lift the load. The hoist will rise smoothly due to needle bearing technology.
4. Lower the load: Gently release the hand chain to lower the load. The Weston-style brake will engage to prevent uncontrolled descent.
5. Release the load: Once the load is at the desired height, securely detach the load hook.

BENEFITS OF USING Jet S90-150-30 1.5 Ton Chain Hoist With 30ft Lift (101923):

• Increased productivity: Efficient lifting and lowering of heavy loads saves time and effort.
• Improved safety: Safety features protect both operators and the load.
• Reduced downtime: Durable construction minimizes repairs and maintenance.
• Versatility: Suitable for a wide range of light-duty industrial applications.

FEATURES:

• All-steel construction
• Weston-style double ratchet pawl brake
• Alloy steel hooks
• Needle bearings
• Grade 80 load chain
• Compact design
