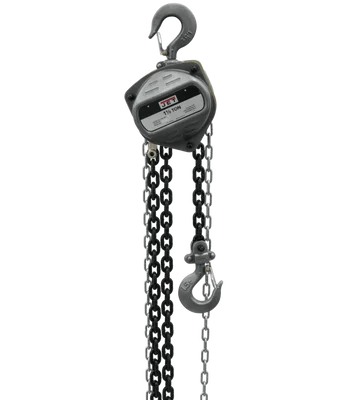

Jet S90-150-20 1.5 Ton Chain Hoist With 20 Foot Lift (101922)

Description

The Jet S90-150-20 1.5 Ton Chain Hoist With 20 Foot Lift (101922) is a robust hand chain hoist designed for efficient lifting in various industrial settings. Built with durability in mind, this hoist is constructed entirely of steel, ensuring long-lasting performance even in demanding conditions.

KEY FEATURES AND BENEFITS:

• Safety: Weston-style dual pawl brake system for reliable load holding, alloy steel hooks for secure lifting, and overload protection through hook stretching.
• Durability: All-steel construction, heat-treated load plates for corrosion resistance, and grade 100 load chain for exceptional strength.
• Efficiency: Needle bearing design for smooth operation and reduced wear, compact size for use in confined spaces.
• Ease of Use: Simple hand chain operation, clear load indicators.

SPECIFICATIONS:

• Capacity: 1-1/2 ton (3300 lbs)
• Lift: 20 feet
• Headroom: 17-1/2 inches
• Number of falls: 1
• Load chain diameter: 7 mm
• Required hand chain to lift load 1′: 58 ft
• Required pounds of pull to lift capacity: 82 lbs
• Dimensions: 8.5″ H x 11″ W x 15″ L
• Net weight: 55 lbs

HOW TO USE:

1. Inspect: Before use, carefully inspect the hoist for any damage or wear. Check the brake system, load chain, and hooks for proper function.
2. Attach Load: Securely hook the load to the hoist’s hook, ensuring the load is balanced and centered.
3. Operate Hand Chain: Pull the hand chain to lift the load. The hoist is equipped with a self-locking mechanism, so the load will remain stationary when the hand chain is released.
4. Lower Load: To lower the load, gradually release the hand chain. Control the lowering speed by adjusting the hand chain release rate.
5. Release Load: Once the load is safely on the ground, detach the hook from the load.

BENEFITS OF USING Jet S90-150-20 1.5 Ton Chain Hoist With 20 Foot Lift (101922):

• Increased productivity through efficient lifting operations.
• Improved worker safety with reliable braking and overload protection.
• Reduced downtime due to the hoist’s durability and easy maintenance.
• Cost-effective solution for various lifting tasks.

FEATURES:

• Weston-style dual pawl brake system
• Alloy steel hooks
• Needle bearing design
• Heat-treated load plates
• Grade 100 load chain
• All-steel construction
• Compact design
• Meets OSHA regulations and industry standards
