Description

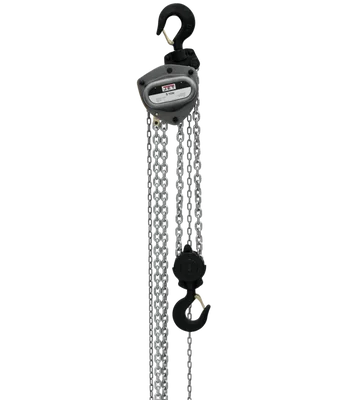

The Jet L100-500WO-20 5Ton Hoist w/20″ Lift & Overload Protection (208120) is a heavy-duty hand chain hoist designed for industrial lifting applications. Built with durability and safety in mind, this hoist is capable of lifting loads up to 5 tons to a height of 20 feet. It features a robust all-steel construction, a patented fused brake system, and a Weston-style double ratchet pawl brake for reliable and secure operation.
KEY FEATURES AND BENEFITS:
- Powerful Lifting Capacity: Handles loads up to 5 tons with ease.
- Safe and Reliable: Patented fused brake system and Weston-style double ratchet pawl brake prevent accidents.
- Durable Construction: All-steel design with heat-treated components for long-lasting performance.
- Smooth Operation: Sealed ball bearings and triple spur gear drive ensure efficient lifting.
- Overload Protection: Slip clutch design prevents damage from excessive loads.
SPECIFICATIONS:
- Capacity: 5 metric tons (11,023 lbs)
- Rated Capacity: 11,023 pounds
- Standard Lift: 20 feet
- Headroom: 23 5/8 inches
- Number of Falls: 2
- Load Chain Diameter: 9 mm
- Required hand chain (ft.) to lift load: 192
- Required pounds of pull to lift capacity: 75
HOW TO USE:
- Inspect the hoist: Check for any damage or wear before use.
- Attach the load hook: Securely hook the load to the hoist’s load hook.
- Engage the brake: Ensure the brake is fully engaged before lifting.
- Lift the load: Pull the hand chain to lift the load.
- Lower the load: Gradually release the hand chain to lower the load.
- Release the load: Fully lower the load and disengage the brake.
BENEFITS OF USING Jet L100-500WO-20 5Ton Hoist w/20″ Lift & Overload Protection (208120):
- Increased efficiency and productivity in lifting tasks.
- Improved safety with overload protection and reliable braking system.
- Reduced downtime due to durable construction and minimal maintenance.
- Cost-effective solution for heavy-duty lifting needs.
FEATURES:
- All-steel construction
- Slip clutch overload protection
- Patented fused brake system
- Weston-style double ratchet pawl brake
- Grade 100 load chain
- Heat-treated load plates
- Sealed ball bearings
- Triple spur gear drive
- Drop forged alloy steel hooks
- Cast steel safety latches
- Proof tested with test certificate
- Complies with OSHA, ANSI/ASME B30.16, and HST-2 standards
