Description

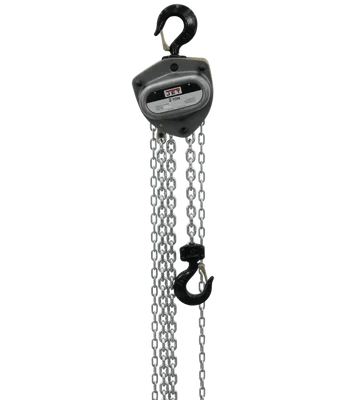

The Jet L100-200WO-30 2 Ton Hoist w/30’Lift & Overload Protection (206130) is a robust, 2-ton capacity chain hoist designed for heavy-duty lifting applications. Built with safety and durability in mind, this hoist is an essential tool for industrial and construction professionals.
KEY FEATURES AND BENEFITS:
- Safety: Patented fused brake system, Weston style dual pawl brake, overload protection, and alloy steel hooks ensure secure lifting.
- Durability: All-steel construction, sealed ball bearings, cast steel safety latches, and heat-treated load plates provide long-lasting performance.
- Efficiency: Triple spur gear drive for smooth operation and reduced effort.
- Compact Design: Smaller body and lightweight for use in confined spaces and low headroom areas.
SPECIFICATIONS:
- Capacity: 2 tons (4400 lbs)
- Lift: 30 feet
- Load chain dimensions: 8 x 24
- Weight: 75 lbs
- Hand chain pull force: 79 lbs
- Headroom: 14-3/4 inches
HOW TO USE:
- Inspect the hoist: Check for any damage before use.
- Attach the load: Securely attach the load chain to the load.
- Secure attachment: Ensure the hoist is securely attached to a fixed overhead point.
- Start lifting: Gradually pull the hand chain to lift the load.
- Lower the load: To lower the load, slowly release the hand chain.
- Test the brake: Always test the brake before lifting heavy loads.
- Capacity: Never exceed the hoist’s rated capacity.
BENEFITS OF USING Jet L100-200WO-30 2 Ton Hoist w/30’Lift & Overload Protection (206130):
- Increased safety with multiple safety features
- Improved efficiency due to smooth operation
- Enhanced productivity through reliable performance
- Reduced downtime with minimal maintenance
- Cost-effective solution for heavy-duty lifting needs
FEATURES:
- Patented fused brake design
- Weston style dual pawl brake system
- Overload protection
- Alloy steel hooks
- Sealed ball bearing design
- Cast steel safety latches
- Heat treated load plates
- Grade 100 load chain
- All steel construction
- Compact design
- Triple spur gear drive
- Smooth rolled edge hand chain cover
