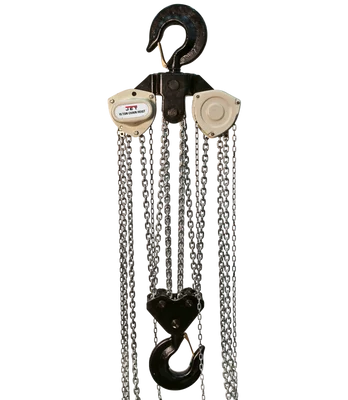

Jet L-100-1500WO-20 15T Hoist 20ft Lift w/Overload Protection (109100)

Description

Jet L-100-1500WO-20 15T Hoist 20ft Lift w/Overload Protection (109100) is a heavy-duty lifting solution designed for industrial applications. This hoist boasts a 15-ton lifting capacity and a 20-foot lift height, making it ideal for lifting and maneuvering heavy equipment, machinery, and materials.

KEY FEATURES AND BENEFITS:

• Safety First: Overload protection prevents lifting beyond the hoist’s capacity, while the Weston style double pawl brake system and industrial-rated hooks with overload indication ensure secure lifting operations.
• Built to Last: Featuring a durable all-steel construction, heat-treated load plates, and a Grade 100 corrosive-resistant load chain (20% stronger than Grade 80), this hoist is built to withstand demanding environments.
• Smooth Operation: Sealed ball bearings promote smooth operation and reduce maintenance needs. The lightweight and compact design makes it suitable for confined spaces.
• Industry Standards: This hoist complies with ANSI/ASME B30.16 and HST-2 standards, ensuring it meets safety and performance requirements.

SPECIFICATIONS:

• Capacity: 15 Tons (33,000 lbs)
• Lift Height: 20 ft
• Overload Protection: Yes
• Headroom: 34-1/3 in
• Hand Chain Pull Force to Lift Load: 80 lbs x 2 falls
• Load Chain Dimensions: 9 mm x 27 mm
• Number of Falls: 6
• Weight: 425 lbs

HOW TO USE:

• Pre-Inspection: Before use, inspect the hoist for any damage or wear. Ensure the load chain, hooks, and safety latches are in good condition. Verify the overload protection mechanism is functional.
• Attaching the Load: Secure the load securely to the hook using a lifting sling or shackle with a suitable capacity. Ensure the load is centered and balanced.
• Lifting: Operate the hand chain smoothly to raise the load. Do not jerk or lift the load at an angle.
• Lowering: Slowly lower the load by letting out the hand chain. Maintain control of the chain to prevent rapid descent.
• Securing the Load: Once the load is in position, secure it using appropriate means to prevent movement.

BENEFITS OF USING Jet L-100-1500WO-20 15T Hoist 20ft Lift w/Overload Protection (109100):

• Safely lifts heavy loads in various industrial applications.
• Durable construction ensures long-lasting performance.
• User-friendly design simplifies lifting operations.
• Overload protection and safety features enhance job site safety.
• Compact design allows for use in confined spaces.
• Meets industry standards for quality and safety.

FEATURES:

• Overload protection
• Weston style double pawl brake system
• Industrial-rated 360° swivel hooks with overload indication
• Grade 100 load chain
• Sealed ball bearings
• Cast steel safety latches
• Heat-treated load plates
• Impact-resistant all-steel construction
• ANSI/ASME B30.16 and HST-2 compliant
