Description

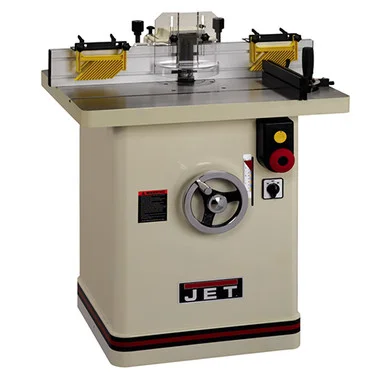

JET JWS-35X5-1 5HP 1PH Shaper
- Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
- Powerful 5HP, 1Ph motor with magnetic controls
- Independently adjustable left and right fences, standard with a micro-adjust control for precise positioning
- Large 26-3/4″ X 32-1/4″ precision-ground cast-iron table provides a durable work area, predrilled for power feeder
- Poly-V-belt transfers maximum power to the spindle
- Starting Pins for irregular shaping
- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
- Extra-large chrome handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
- Reversible spindle speeds for diverse shaping jobs
- 4″ Dust port built into fence for convenient hookup to any dust collection system
- Spindle lock for safe and easy cutter set-up
- Spindle height scale
Specifications:
- Model #: JWS-35X5-1
- Brand: Jet
- Warranty: 5 Year
- Spindle Speed (RPM): 4000, 6000, 8000, 10000
- Reversible: Yes
- Spindle Diameter (in.): 3/4″
- Spindle Size Under Nut (in.): 4″
- Spindle Travel (in.): 4″
- Table Size (in.): 26-3/4″ X 32-1/4″
- Table T-Slot: Yes
- Table Opening Diameter (in.): 7-1/4″
- Table Insert Opening Diameter (in.): 2-5/8″, 4-7/8″
- Fence Size (L x H/in.): 4-3/4″ X 16″
- Router Bit Collet Diameter (in.): 1/4″, 1/2″ (optional)
- Table Height From Floor (in.): 33-1/4″
- Electrical Controls – Magnetic Starter: Magnetic Starter
- Maximum Diameter Cutter Below Table (in.): 6″
- Maximum Diameter Cutter Above Table (in.): 7-1/2″
- Table Inserts: 2
- Fence Travel (Major and Minor/in.): 4″, 1″
- Dust Port Diameter (OD/in.): 4″
- Dust Collection Minimum CFM Required: 400
- Motor HP: 5
- Motor Phase: 1
