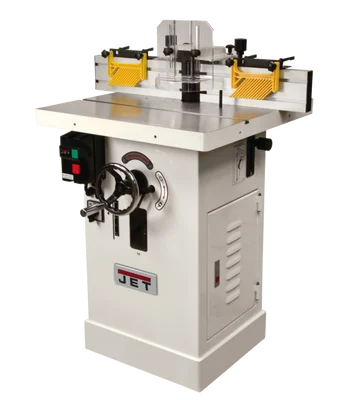

Jet JWS-25X 3PH 1PH JET Shaper (708309)

Description

Jet JWS-25X 3PH 1PH JET Shaper (708309) is a versatile woodworking machine designed for shaping tasks such as moldings, trims, grooves, and raised panels. It features a powerful 3 HP motor with magnetic controls for smooth operation and a large 25″ x 25-1/2″ precision ground cast iron table for superior stability and workpiece support.

KEY FEATURES AND BENEFITS:

• Powerful 3 HP motor with magnetic controls for smooth operation
• Large 25″ x 25-1/2″ precision ground cast iron table for superior stability and workpiece support
• Two speeds (7500 & 10,000 RPM) for optimal control with various cutter diameters
• Independently adjustable left & right fences with micro adjust for precise positioning
• Built-in 4″ dust port for efficient dust collection (requires 600 CFM minimum)
• Reversible spindle for a wider range of shaping applications
• Spindle lock for safe and easy cutter changes

SPECIFICATIONS:

• Spindle Diameter: 1/2″ and 3/4″
• Spindle Travel: 3-1/2″
• Table Size: 25-1/2″ x 25″
• Table Height from Floor: 33″
• Motor Power: 3 HP
• Motor Voltage: 230V (single-phase)
• Dust Port Diameter: 4″
• Warranty: 5 years

HOW TO USE:

• Preparation: Ensure your shaper is properly secured and level. Verify your chosen cutter is compatible with the spindle size and speed. Wear appropriate safety gear (eye protection, dust mask, etc.).
• Workpiece Setup: Secure your workpiece to a workbench or use a hold-down clamp on the shaper table. Mark your cutting lines clearly.
• Cutter Installation: Install the desired cutter following the manufacturer’s instructions. Utilize the spindle lock for safe cutter changes.
• Adjustments: Set the spindle speed based on the cutter size and material. Adjust fence positions and featherboards for precise workpiece control.
• Shaping: Power on the shaper and allow the spindle to reach full speed. Guide the workpiece steadily against the fence, maintaining even pressure.

BENEFITS OF USING Jet JWS-25X 3PH 1PH JET Shaper (708309):

• Versatility: Handles various woodworking shaping tasks, including moldings, trims, grooves, and raised panels.
• Precision Control: Dual speeds, micro-adjustable fences, and a large work surface ensure accurate shaping results.
• Power and Stability: Powerful motor and cast iron table provide smooth operation for demanding projects.
• Efficiency: Built-in dust collection port minimizes dust in your workspace.
• Safety: Spindle lock and other features enhance safety during cutter changes and operation.

FEATURES:

• Poly-V belt for maximum power transfer
• Extruded aluminum fence with T-slots for jigs and featherboards
• Starting pins for shaping irregular pieces
• Extra-large handwheel for easy spindle height adjustments
• Includes two table inserts
