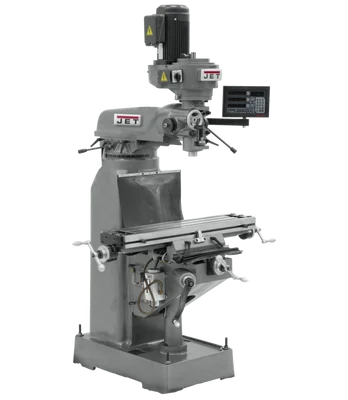

Jet JVM-836-3 Milling Machine with C80-DRO & X-Axis Powerfeed (691180)

Description

Jet JVM-836-3 Milling Machine with C80-DRO & X-Axis Powerfeed (691180) is a professional-grade tool designed for precision metalworking. With its robust build, advanced features like a digital readout (DRO) and powerfeed, and emphasis on user safety, it is ideal for machinists, workshops, and industrial settings.

KEY FEATURES AND BENEFITS:

• Precision Machining: The precision-bored and honed milling head, coupled with the hardened and ground table, ensure tight tolerances and accurate results.
• Enhanced Productivity: The Newall DP700 DRO and X-axis powerfeed streamline operations, improving efficiency and precision.
• Versatility: The tilting head and ample travel in multiple axes allow for a wide range of milling operations.
• Safety First: Locks on all movable surfaces and way covers prioritize user safety.
• Durability: Built with high-quality components, this machine is designed for long-lasting performance in demanding environments.

SPECIFICATIONS:

• Spindle: R-8 taper, 3-3/8″ quill diameter, 10 speeds (120-1550 RPM), 5″ travel.
• Table: 7-7/8″ x 35-3/4″, 22-1/4″ longitudinal travel, 9-1/2″ cross travel, 500 lbs capacity.
• Travels: 14″ knee travel, 10-1/2″ ram travel.
• Digital Readout (DRO): Newall DP700, 2-axis.
• Powerfeed: X-axis.
• Motor: 1-1/2 HP, 230V, 3-phase.
• Dimensions: 55″ L x 52″ W x 78″ H, 1610 lbs.

HOW TO USE:

1. Preparation: Securely mount your workpiece on the table, ensuring it is properly aligned and clamped.
2. Tool Selection: Choose the appropriate milling cutter for your desired operation.
3. Speed and Feed: Set the spindle speed and powerfeed rate according to the material and cutter type.
4. DRO Setup: Zero the DRO axes and use it to precisely position the workpiece.
5. Milling: Engage the powerfeed or manually control the axes to perform your desired cuts.
6. Monitoring: Pay close attention to the operation, ensuring the workpiece is secure and the cutting is proceeding as expected.
7. Safety: Always wear appropriate safety gear and follow the manufacturer’s instructions.

BENEFITS OF USING THE Jet JVM-836-3 Milling Machine with C80-DRO & X-Axis Powerfeed (691180):

• Increased productivity due to DRO and powerfeed.
• Improved accuracy and precision for professional results.
• Enhanced safety with built-in features.
• Durability for long-term use.

FEATURES:

• Precision-bored and honed milling head
• Hardened and ground table
• Chromed large-diameter quill
• High-precision spindle bearings
• 10″ front-to-back ram travel
• Tilting head
• Graduated scale on column
• One-shot lubrication system
• Way covers
• Draw bar
• Tool box and tools
