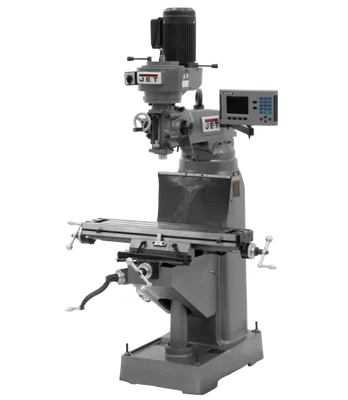

Jet JVM-836-3 Milling Machine with ACURITE 200S DRO Installed (690190)

Description

The Jet JVM-836-3 Milling Machine with ACURITE 200S DRO Installed (690190) is a robust vertical milling machine designed for precision and versatility in various machining applications. With a hardened and ground table, a powerful 1-1/2 HP motor, and the integrated ACU-RITE 200S DRO, this machine is ideal for both professional workshops and serious hobbyists.

KEY FEATURES AND BENEFITS:

• Precision Machining: The precision bored and honed milling head, combined with the hardened and ground table, ensures exceptional accuracy and tolerance retention for demanding projects.
• Versatile Operation: The tilting head (90º left & right) and over 10 inches of ram travel offer a wide range of movement for complex milling operations.
• User-Friendly: The ACU-RITE 200S DRO simplifies operation and enhances accuracy, while locks on all movable surfaces ensure user safety.
• Durable Construction: Built with high-quality materials and components, the Jet 690190 is designed for long-lasting performance and reliability.

SPECIFICATIONS:

• Motor: 1-1/2 HP, 230V, 3-phase
• Spindle Speeds: 10
• Spindle Taper: R-8
• Quill Diameter: 3-3/8 inches
• Table Travel: 22-1/4 inches (longitudinal), 9-1/2 inches (cross)
• Spindle to Table Distance: 13-3/4 inches (max)
• Table Size: 7-7/8 x 35-3/4 inches
• Overall Dimensions: 55 x 52 x 78 inches (L x W x H)
• Weight: 1610 lbs

HOW TO USE:

1. Preparation: Securely mount your workpiece on the milling table using appropriate clamps or fixtures.
2. Tool Selection: Choose the correct milling cutter for your desired operation and install it in the spindle.
3. DRO Setup: If using the ACU-RITE 200S DRO, set your zero points and desired coordinates.
4. Operation: Start the machine and carefully engage the milling cutter with the workpiece. Use the handwheels or DRO to control the movement of the table and quill.
5. Safety: Always wear appropriate safety gear, including eye and ear protection. Follow proper milling techniques and safety guidelines.

BENEFITS OF USING THE Jet JVM-836-3 Milling Machine with ACURITE 200S DRO Installed (690190):

• Enhanced precision and accuracy in machining operations.
• Increased productivity and efficiency.
• Ability to handle a wider range of projects and materials.
• Improved safety with locks on all movable surfaces.
• Long-term reliability and durability.

FEATURES:

• One-shot lubrication system for easy maintenance.
• Hardened and ground precision table for durability.
• Graduated scale on the column for quick reference.
• Precision-ground dovetail ways for smooth operation.
• Includes way covers, drawbar, toolbox, and tools.
