Description

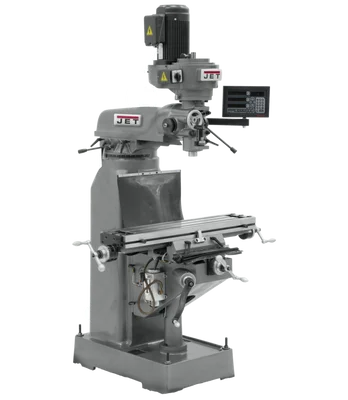

JET JVM-836-1 Milling Machine with Newall DP700 DRO (691173) is a powerhouse for precision machining tasks. Equipped with a Newall Digital Readout (DRO), this machine offers unmatched accuracy and repeatability for both hobbyists and professional machinists. With a robust build, powerful motor, and versatile features, the JVM-836-1 is ready to tackle a wide range of milling operations.
KEY FEATURES AND BENEFITS:
- Precision Machining: The precision-bored and honed milling head, along with the hardened and ground table, ensures exceptional accuracy and durability for your projects.
- Enhanced Control: The Newall DRO provides real-time feedback on axis positions, simplifying complex operations and ensuring precise cuts.
- Powerful Performance: A 1.5 HP motor and 5 spindle speeds (240 – 1550 RPM) offer ample power and flexibility for various materials and tasks.
- User-Friendly: Features like locks on all movable surfaces, one-shot lubrication, and graduated scales contribute to a safe and convenient user experience.
- Versatility: With a tilting head, ample table travel, and a generous ram range, the JVM-836-1 can handle a wide array of milling projects.
SPECIFICATIONS:
- Model: Jet 691173 JVM-836-1
- DRO: Newall (C80 or DP700, confirm with seller)
- Motor: 1.5 HP, 115/230V, 1Ph
- Spindle Speeds: 5 (240 – 1550 RPM)
- Table Size: 7-7/8 x 35-3/4 inches
- Travel (Longitudinal/Cross/Knee/Ram): 22-1/4 / 9-1/2 / 14 / 10-1/2 inches
- Overall Dimensions: 55 x 52 x 78 inches (verify with seller)
- Weight: 1617 lbs
HOW TO USE:
- Setup: Securely mount the workpiece on the table using clamps or vises.
- Tool Selection: Choose the appropriate milling cutter for your desired operation.
- Spindle Speed: Set the spindle speed based on the material and cutter type.
- DRO Calibration: Ensure the DRO is calibrated to zero before starting.
- Feed Rate: Adjust the feed rate based on the material and cutter type.
- Cutting: Engage the spindle and carefully guide the cutter into the workpiece.
- Monitoring: Monitor the DRO for accurate positioning and dimensions.
- Lubrication: Regularly lubricate the machine according to the manufacturer’s instructions.
BENEFITS OF USING THE Jet JVM-836-1 Milling Machine with Newall DP700 DRO (691173):
- Increased productivity with efficient and precise machining.
- Improved accuracy and consistency in cuts.
- Reduced scrap and rework due to precise control.
- Enhanced versatility for various milling tasks.
- Increased user satisfaction with its ease of use and reliability.
FEATURES:
- Precision bored and honed milling head
- Hardened and ground table
- Large diameter, chromed quill
- High-precision spindle bearings
- Over 10 inches of ram travel
- Locks on all movable surfaces
- Head tilts left or right
- Graduated scale on column
- Precision ground dovetail ways
- One-shot lubrication system
