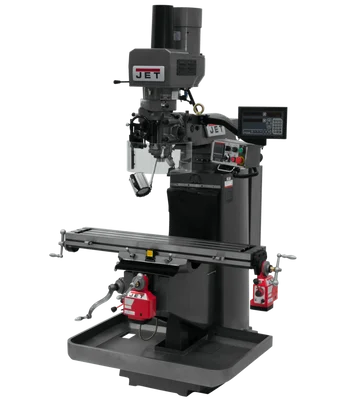

Jet JTM-949EVS Mill with Newall DP700 3X (Q) DRO XY Powerfeed (690548)

Description

Jet JTM-949EVS Mill with Newall DP700 3X (Q) DRO XY Powerfeed (690548) is a versatile vertical milling machine built for precision and durability.

KEY FEATURES AND BENEFITS:

• Rigid Construction: Certified Meehanite cast iron base ensures stability and minimizes deflection during heavy cuts.
• Enhanced Accuracy: Newall DP700 DRO provides precise readings on all three axes (X, Y, Quill).
• Automated Efficiency: X and Y-axis power feeds for effortless material movement.
• Smooth Operation: Automatic oiler maintains lubrication for extended machine life.
• Easy Tool Changes: Pneumatic drawbar simplifies securing and releasing cutting tools.
• User-Friendly Controls: Swing-away control box with E-stop button for convenient operation and safety.
• Durable Work Table: Hardened and ground table surface ensures flatness and resists wear.
• Reduced Vibration: Turcite-B coated X and Y-axis minimize vibration for cleaner cuts.
• Improved Visibility: LED work lamp illuminates the work area for better precision.
• Heavy-Duty Construction: 3 HP motor and 2420 lb weight handle demanding applications.

SPECIFICATIONS:

• Digital Readout (DRO): Newall DP700 (3-axis with quill readout)
• Powerfeed: X and Y-axis
• Power Drawbar: Pneumatic
• Table Size: 9″ x 49″
• Spindle Travel: 5″
• Spindle Speeds: Variable (60 – 4,500 RPM)
• Collet Capacity: 1/8″ – 7/8″
• Table Travel (Longitudinal): 36″ (30-3/4″ with powerfeed)
• Table Travel (Cross): 12-5/8″
• Work Table Weight Capacity: 720 lbs
• Motor: 3 HP, 230V, 3-Phase
• Overall Weight: 2,420 lbs

HOW TO USE:

1. Installation: Secure the mill to a stable and level surface following the manufacturer’s instructions.
2. Set Up: Mount the desired cutting tool in the spindle using the drawbar.
3. Positioning: Adjust the table and head (X, Y, Z axes) using the hand cranks or power feeds (if equipped) to position the workpiece for machining.
4. Machining: Turn on the machine and set the desired spindle speed. Carefully move the table or head to perform the milling operation according to your project plan.
5. Safety: Always wear safety glasses, gloves, and appropriate clothing while operating the mill. Utilize the safety shield and E-stop button whenever necessary.

BENEFITS OF USING Jet JTM-949EVS Mill with Newall DP700 3X (Q) DRO XY Powerfeed (690548):

• Achieve high-precision machining results on various materials.
• Increase productivity with automated features like power feeds and tool changes.
• Reduce operator fatigue with ergonomic design and easy-to-use controls.
• Ensure machine longevity with robust construction and automatic lubrication.
• Handle demanding projects with a powerful motor and rigid build.

FEATURES:

• Certified Meehanite cast iron base
• Newall DP700 Digital Readout (DRO)
• X and Y-axis power feeds
• Pneumatic drawbar
• Swing-away control box with E-stop button
• Hardened and ground table
• Turcite-B coated ways
• LED work lamp
• Chip pan
• Dual locks on movable surfaces
• Way covers
• Toolbox with tools
