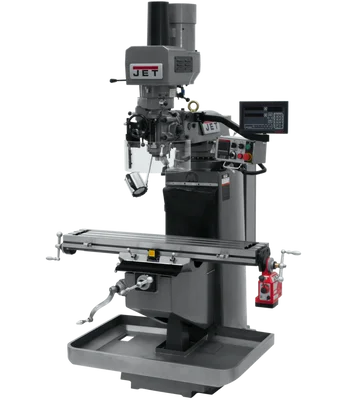

Jet JTM-949EVS Mill w/ Newall DP700 DRO X Powerfeed & APD (690536)

Description

Jet JTM-949EVS Mill w/ Newall DP700 DRO X Powerfeed & APD (690536) is a versatile tool designed for precision metalworking. Featuring a Newall DP700 digital readout, X-axis power feed, and air power drawbar, this machine offers efficient and accurate operation. Built with a sturdy Certified Meehanite® casting, it ensures durability and maintains precision over time.

KEY FEATURES AND BENEFITS:

• Newall DP700 DRO: Provides accurate measurements for precise machining.
• X-Axis Power Feed: Enhances efficiency and productivity.
• Air Power Drawbar: Simplifies tool changes, saving time and effort.
• Certified Meehanite® Casting: Guarantees rigidity and maintains accuracy.
• Variable Spindle Speed: Offers versatility for various cutting applications.
• Safety Features: Includes E-stop, swing-away safety shield, and heavy-duty spindle brake.

SPECIFICATIONS:

• Table size: 9″ x 49″
• Quill diameter: 3-3/8″
• Spindle speed range: 60-4,500 RPM
• Quill down feed rates: .0015 – .003 – .006 IPR
• Spindle travel: 5″
• Head movement: 90 Degree R & L, 45 Degree F & B
• Motor: 3HP, 230V, 3Ph
• Other specifications (refer to provided data)

HOW TO USE:

• Set up the machine: Ensure the machine is securely placed on a level surface. Connect to the power supply.
• Adjust spindle speed: Select the appropriate spindle speed based on the material and cutting tool.
• Secure workpiece: Clamp the workpiece firmly to the machine table using vise or clamps.
• Position cutting tool: Install the desired cutting tool in the spindle and secure it with the drawbar.
• Engage power feed: Turn on the X-axis power feed for efficient material removal.
• Operate controls: Use the control panel to manipulate the machine’s movements and feed rates.
• Monitor cutting process: Observe the cutting process and make adjustments as needed.
• Turn off machine: Once the work is complete, turn off the power and safely remove the workpiece.

BENEFITS OF USING Jet JTM-949EVS Mill w/ Newall DP700 DRO X Powerfeed & APD (690536):

• Increased productivity: X-axis power feed and variable spindle speed enhance efficiency.
• Improved accuracy: Newall DP700 DRO provides precise measurements.
• Enhanced safety: Safety features protect the operator.
• Durable construction: Certified Meehanite® casting ensures long-lasting performance.
• Versatile applications: Suitable for various metalworking tasks.

FEATURES:

• Newall DP700 DRO
• X-axis power feed
• Air power drawbar
• Certified Meehanite® casting
• Variable spindle speed
• E-stop
• Swing-away safety shield
• Heavy-duty spindle brake
• Automatic oiler
• Swing-away control box
• LED work lamp
• Chip pan
• Dual locks on all moveable surfaces
• Way covers
• Drawbar
• Tool box with tools
