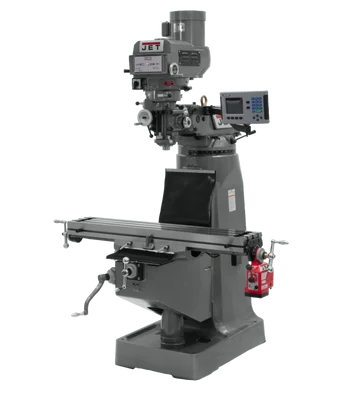

Jet JTM-4VS-1 Mill 3-Axis ACU-RITE 200S DRO (K) X-Powerfeed (691411)

Description

The Jet JTM-4VS-1 Mill 3-Axis ACU-RITE 200S DRO (K) X-Powerfeed (691411) is a versatile and user-friendly knee mill designed for precise metalworking applications. Constructed with a rigid Meehanite casting base, this mill dampens vibrations and ensures stable operation. The precision bored and honed milling head guarantees accurate cuts, while the variable speed control (60-4,200 RPM) allows you to adjust for different materials and tasks.

KEY FEATURES AND BENEFITS:

• 3-Axis ACU-RITE 200S DRO (Digital ReadOut): Provides real-time position data on X, Y, and Z axes for improved machining accuracy.
• X-Axis Powerfeed: Automates table movement during milling operations, enhancing efficiency and reducing operator fatigue.
• R8 Spindle Taper: Offers compatibility with a wide range of milling tools and accessories.
• Large Quill Travel (5″) and Head Movement (90° R&L, 45° F&B): Enables a broad range of machining operations.
• Heavy-Duty Construction: Chromed quill, high-precision spindle bearings, chrome-plated motor shaft, and internally cooled spindle head for extended tool life.
• Three-Stage Power Downfeed with Automatic Stop: Simplifies depth control and ensures consistent results.
• Durable Design: Adjustable gibs, hardened and ground ways and table, internal coolant tank (pump not included) for long-lasting performance.
• 2 HP Motor (115/230V, 1Ph): Delivers ample power for various milling tasks.

SPECIFICATIONS:

• Table Size: 9″ x 49″
• Quill Diameter: 3-3/8″
• Collet Capacity: 1/8″ – 7/8″
• Table Longitudinal Travel: 34″ (28-3/4″ with powerfeed)
• Table Cross Travel: 12″
• T-Slots: 3 (5/8″)
• Work Table Weight Capacity: 660 lbs
• Overall Dimensions: 66″ x 63″ x 85″
• Weight: 2,420 lbs

HOW TO USE:

1. Securely ground the mill for stability.
2. Adjust the variable speed control based on material requirements.
3. Utilize the X-axis powerfeed for automated table movement.
4. Monitor cutting tool position using the ACU-RITE 200S DRO.
5. Engage the three-stage power downfeed for controlled depth milling.

BENEFITS OF USING Jet JTM-4VS-1 Mill 3-Axis ACU-RITE 200S DRO (K) X-Powerfeed (691411):

• Provides precise machining with enhanced accuracy
• Automates operations to improve efficiency and reduce fatigue
• Supports a wide range of tooling for diverse applications
• Offers durable construction for long-term reliability

FEATURES:

• Simplifies depth control and ensures consistent results.
• Adjustable gibs, hardened and ground ways and table, internal coolant tank (pump not included) for long-lasting performance.
• Delivers ample power for various milling tasks.
