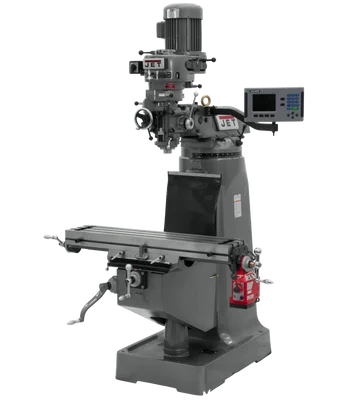

Jet JTM-2 Mill w/3-Axis ACU-RITE 203 DRO (Q) X-Axis Powerfeed (690072)

Description

The Jet JTM-2 Mill w/3-Axis ACU-RITE 203 DRO (Q) X-Axis Powerfeed (690072) is a vertical milling machine designed for precision and versatility. Its robust construction and advanced features make it suitable for various machining tasks in both workshops and industrial settings.

KEY FEATURES AND BENEFITS:

• Precision Machining: The JTM-2 features a precision bored and honed milling head, ensuring accurate and smooth operation for superior results.
• Rigid Construction: Built with certified Meehanite castings, the JTM-2 provides a stable platform for minimizing vibrations and maximizing accuracy during machining operations.
• Versatile Performance: With a 3-axis DRO (Digital Readout) and X-axis powerfeed, the JTM-2 offers enhanced accuracy and control, allowing for efficient and precise milling operations.
• Efficient Cooling: The built-in internal coolant tank (coolant pump not included) enables efficient cooling during operation, improving tool life and preventing workpiece damage.
• User-Friendly: The JTM-2 comes equipped with various accessories, including a tolerance test sheet, one-shot lubrication system, way covers, draw bar, and a tool box with tools, making it easy to set up and use.

SPECIFICATIONS:

• Model: JTM-2
• Stock Number: JT-690072
• DRO: 200S 3-Axis Quill DRO
• Powerfeed: X-Axis Powerfeed (X-TPFA)
• Spindle: R-8 taper, 80-2720 RPM
• Quill: 3-3/8 inches diameter
• Table Size: 9 x 42 inches
• Travel: Knee: 14-1/2 inches, Ram: 13-3/8 inches
• Motor: 2 HP, 115/230V, 1Ph
• Dimensions: 81H x 57W x 64L inches
• Weight: 2200 lbs

HOW TO USE:

1. Preparation: Securely mount the workpiece on the table using appropriate clamps or fixtures.
2. Tool Selection: Choose the correct milling cutter based on the desired operation and material.
3. Spindle Speed: Set the spindle speed according to the cutter and material specifications.
4. Feed Rate: Adjust the feed rate based on the cutting depth and material.
5. DRO Setup: Calibrate the DRO system to ensure accurate measurements.
6. Operation: Engage the powerfeed (if applicable) and carefully move the table or quill to start the milling process. Monitor the DRO for precise positioning.
7. Lubrication: Regularly lubricate the machine according to the manufacturer’s instructions.
8. Maintenance: Clean the machine after each use and perform periodic maintenance to ensure optimal performance and longevity.

BENEFITS OF USING Jet JTM-2 Mill w/3-Axis ACU-RITE 203 DRO (Q) X-Axis Powerfeed (690072):

• Improved Accuracy: Precise machining capabilities for superior results.
• Enhanced Productivity: 3-axis DRO and X-axis powerfeed for efficient operation.
• Increased Tool Life: Efficient cooling system for extended tool life.
• Reduced Downtime: Durable construction and easy maintenance for minimal downtime.
• Versatility: Suitable for a wide range of milling applications.

FEATURES:

• Meehanite casting for stability
• Precision bored and honed milling head
• Chromed quill for smooth operation
• High precision Class 7 spindle bearings
• Internal coolant tank
• One-shot lubrication system
• Way covers
• Draw bar
• Tool box with tools
