Jet JTM-1254VS Mill w/ ACU-RITE 303 DRO XYZ Pwrfds & APD (698151)

Description

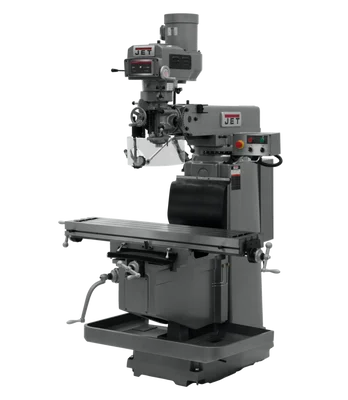

Jet JTM-1254VS Mill w/ ACU-RITE 303 DRO XYZ Pwrfds & APD (698151) is a robust and accurate vertical milling machine designed for precision machining tasks. Equipped with an Acu-Rite 303 DRO, power feeds on all axes, and an air power drawbar, this machine offers enhanced efficiency and control. Built with a heavy-duty Meehanite cast iron base, it ensures stability and durability during operation.

KEY FEATURES AND BENEFITS:

• Acu-Rite 303 DRO: Provides precise measurements for accurate machining.
• Power Feeds: Enables faster and smoother operation on X, Y, and Z axes.
• Air Power Drawbar: Simplifies cutter changes with pneumatic power.
• Variable Speed: Offers a wide range of spindle speeds for versatility.
• Heavy-Duty Construction: Ensures stability and durability.

SPECIFICATIONS:

• Spindle Travel: 5 inches
• Table Cross Travel: 15-1/3 inches
• T-Slot Centers: 2-1/2 inches
• Quill Diameter: 4-1/8 inches
• Range of Spindle Speeds: 80-3,800 RPM
• Table Size: 12 x 54 inches
• Motor: 5HP, 230/460V, 3Ph
• Weight: 3696 lbs

HOW TO USE:

Setting Up:

• Secure the milling machine to a stable and level surface.
• Connect the power supply and air compressor.
• Check for proper lubrication and coolant levels.

Basic Operation:

• Turn on the power switch and allow the machine to warm up.
• Zero the DROs for accurate measurements.
• Select the desired spindle speed and feed rate.
• Secure the workpiece to the machine table using clamps or vices.
• Engage the power feed for automatic movement.
• Use the handwheels for manual adjustments.
• Monitor the cutting process and adjust as needed.
• Turn off the power and disconnect the air compressor after use.

BENEFITS OF USING Jet JTM-1254VS Mill w/ ACU-RITE 303 DRO XYZ Pwrfds & APD (698151):

• Increased Productivity: Power feeds and DRO enhance efficiency.
• Improved Accuracy: Digital readouts and precision components ensure precise results.
• Versatile Applications: Handles a wide range of materials and machining tasks.
• Durable Construction: Built to last with heavy-duty components.
• Operator Comfort: Ergonomic design for reduced fatigue.

FEATURES:

• Certified Meehanite castings
• Hardened and ground table
• Chrome lead screws on X and Y axis
• Turcite B on X and Y axis
• Satin chrome finish on dials
• Precision bored and honed milling head
• Large diameter chromed quill
• High precision Class 7 spindle bearing
• Internally cooled spindle head
• No fuse breaker power connections
• Heavy duty motor drive
• Chrome plated motor shaft with bearing support at end
• One piece quill pinion and shaft
• Three stage power downfeed with automatic stop
• Heavy duty spindle brake
• Locks on All Moveable Surfaces
• Adjustable Gibs Throughout
• Way Covers
• Draw Bar
• Tool Box with Tools
