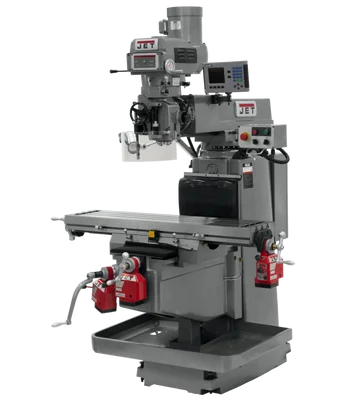

Jet JTM-1254VS Mill w/ACU-RITE 203 3X (Q) DRO & XYZ Powerfeed (698065)

Description

Jet JTM-1254VS Mill w/ ACU-RITE 203 3X (Q) DRO & XYZ Powerfeed (698065) is a heavy-duty vertical milling machine designed for precision and efficiency. Built with certified Meehanite castings and high-quality components, this machine delivers exceptional performance and durability. It features an ACU-RITE 203 digital readout for accurate measurements and power feeds on all axes for smooth operation.

KEY FEATURES AND BENEFITS:

• Precision and Accuracy: High-precision spindle bearings, hardened and ground ways, and digital readout ensure precise cuts and finishes.
• Efficiency: Variable speed control, power feeds, and quick nut spindle feed enhance productivity.
• Durability: Certified Meehanite castings and robust construction provide long-lasting performance.
• Ease of Use: User-friendly design with automatic lubrication and clear controls simplifies operation.
• Versatility: Suitable for a wide range of milling applications due to its powerful motor and versatile features.

SPECIFICATIONS:

• Style (Type): Variable Speed NT40
• Digital Readout: ACU-RITE 203
• Number of Axis: 3 (Quill)
• Powerfeed: X, Y, and Z-Axis
• Spindle Speeds: 80 – 3,800 RPM
• Table Size: 12″ x 54″
• Longitudinal Travel: 33-7/8″
• Cross Travel: 15-1/3″
• Vertical Travel: 19-1/4″
• Spindle Taper: NST #40
• Motor HP: 5 HP, 230/460V, 3 Ph
• Weight: 3969 lbs
• Dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″

HOW TO USE:

1. Setting Up:
   • Ensure the machine is securely placed on a level surface.
   • Connect the power cord to a properly grounded outlet.
   • Check the coolant system and lubrication levels.
   • Install the desired cutting tool and secure it properly.
2. Operating the Machine:
   • Turn on the power switch.
   • Set the desired spindle speed using the variable speed control.
   • Engage the power feed for the desired axis.
   • Lower the quill to the desired depth using the handwheel or power feed.
   • Start the spindle and begin milling.
   • Monitor the cutting process and adjust as needed.
   • Turn off the power and clean the machine after use.

BENEFITS OF USING Jet JTM-1254VS Mill w/ ACU-RITE 203 3X (Q) DRO & XYZ Powerfeed:

• Improved Precision: The accurate digital readout and precise components ensure high-quality workpieces.
• Increased Efficiency: Power feeds and variable speed control allow for faster and smoother operation.
• Enhanced Durability: The robust construction and long-lasting components provide reliable performance.
• User-Friendly Operation: Easy-to-use controls and automatic lubrication minimize setup time and effort.
• Versatile Applications: Handle a wide range of milling tasks with ease.

FEATURES:

• Certified Meehanite castings
• High-precision spindle bearings
• Hardened and ground ways and table
• Three precision ground t-slots
• Turcite B on X and Y axis
• Adjustable gibs
• Automatic lubrication system
• Quick nut spindle feed
• LED machine lamp
• Chip pan
• Tool box with tools
