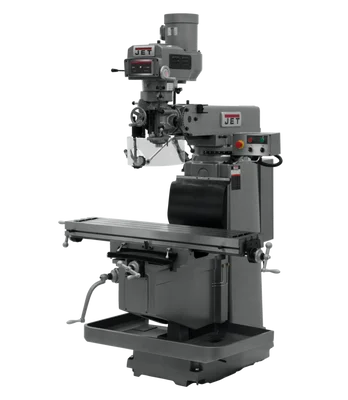

Jet JTM-1254VS Mill w/300S 3X-Q X/Y PFD APDB (698161)

Description

Jet JTM-1254VS Mill w/300S 3X-Q X/Y PFD APDB (698161) is a heavy-duty vertical milling machine built for precision and efficiency in machine shops and fabrication environments. This versatile machine features a variable speed NT40 spindle offering a wide range of speeds (80-3,800 RPM) to tackle various materials. The rigid construction with certified Meehanite castings ensures stability and vibration dampening for accurate machining results.

KEY FEATURES AND BENEFITS:

• Automated features enhance productivity:
  • X & Y-axis power feeds: Allows for hands-free movement of the work table along both axes, streamlining repetitive tasks.
  • Automatic lubrication system: Reduces maintenance downtime by continuously lubricating critical components.
• Precise control and positioning:
  • Acu-Rite 300 3X (Q) Digital Readout (DRO): Displays the position of the cutting tool in real-time for high-precision results.
• User-friendly features:
  • Air power drawbar: Allows for quick and effortless tool changes, minimizing downtime.
  • Spindle brake: Ensures rapid stopping of the spindle for added safety.
  • LED machine lamp: Provides excellent illumination of the work area, enhancing visibility and reducing eye strain.
  • Chip pan: Facilitates easy chip collection and disposal, maintaining a clean work environment.

SPECIFICATIONS:

• Table Size: 12″ x 54″
• Spindle Taper: NT40
• Spindle Speed Range: 80-3,800 RPM
• X-axis Travel: 33-7/8″ (with powerfeed: 28-1/4″)
• Y-axis Travel: 15-1/3″
• Z-axis Travel (Quill): 5″
• Motor: 5 HP, 3-Phase

HOW TO USE:

Operate the Jet JTM-1254VS 300S efficiently with these steps:

• Step 1: Set the desired spindle speed using the variable speed control.
• Step 2: Utilize the X & Y-axis power feeds for automated movement.
• Step 3: Monitor tool position with the Acu-Rite 300 DRO for precise machining.
• Step 4: Maintain machine cleanliness with regular use of the chip pan.
• Step 5: Ensure safety by utilizing the spindle brake and observing operational guidelines.

BENEFITS OF USING Jet JTM-1254VS Mill w/300S 3X-Q X/Y PFD APDB (698161):

• Enhanced productivity with automated features.
• Precision control for accurate machining results.
• User-friendly design simplifies operation and maintenance.
• Robust construction ensures durability and stability.

FEATURES:

• Based on the above features, the Jet JTM-1254VS 300S includes:
• Variable speed NT40 spindle for versatile material handling.
• Stability and vibration dampening with certified Meehanite castings.
• Efficient tool changes with air power drawbar.
• Enhanced visibility with LED machine lamp.
