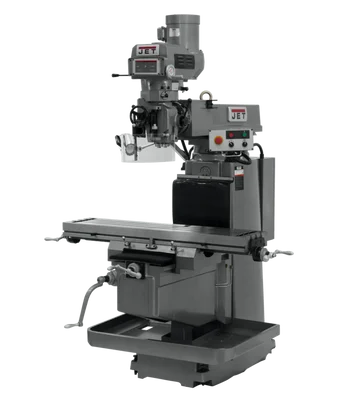

Jet JTM-1254VS Mill w/3-Axis ACU-RITE G2 MILLPOWER CNC & APDB (691942)

Description

The Jet JTM-1254VS Mill w/3-Axis ACU-RITE G2 MILLPOWER CNC & APDB (691942) is a complete CNC vertical milling machine designed for precision and efficiency in machine shops. It offers a choice of 2 or 3-axis CNC controls, allowing you to tailor the machine to your specific needs.

KEY FEATURES AND BENEFITS:

• Solid Foundation: The base and column are constructed from Meehanite® cast iron, known for excellent vibration damping properties, minimizing chatter and ensuring machining accuracy.
• Precision Machined Components: The milling head is precision-bored and honed for rigidity, while high-precision class 7 spindle bearings minimize runout and vibration.
• Powerful Performance:
  • 5 HP, 3-Phase Motor: Delivers ample power for a wide range of materials.
  • NMTB #40 Spindle Taper: Provides compatibility with various tooling options.
  • Air Power Drawbar: Enables quick and effortless tool changes, minimizing downtime.
• Advanced CNC Control System:
  • ACU-RITE G-2 MILLPWR G2 Control: User-friendly interface with a 12.1″ high-resolution display and 3D graphics.
  • Enhanced Functionality: USB + Ethernet compatibility, powerful processor, expanded tool library, and datum offsets for precise positioning.
  • Streamlined Workflow: Program preview, jog control, 3D contouring, and G-code compatibility for CAD/CAM software integration.
  • Programming Versatility: Conversational programming, editing functions, and built-in calculator for in-program calculations.
• Additional Features:
  • Optimized path and feed features for enhanced efficiency.
  • Offline software and estimated runtime feature available.
  • Three Precision Ground T-Slots: Secure workpieces for stable and accurate machining.
  • Turcite B on X & Y Axes: Provides smooth table travel for optimal performance.
  • Adjustable Gibs: Allow for maintaining machine accuracy over time.
  • CSA/CUS Certified: Ensures electrical safety compliance.
  • Automatic Lubrication System: Reduces maintenance and extends machine life.
  • Two 115V Outlets: Power auxiliary equipment like feeds.

SPECIFICATIONS:

• Table size: 12″ x 54″
• Spindle taper: NMTB #40
• Spindle speed range: 80 – 3,800 RPM
• Air power drawbar: Yes
• Motor: 5 HP, 3-phase
• Weight: 3696 lbs

HOW TO USE:

• Step 1: Power on the machine and initialize the ACU-RITE G2 MILLPOWER CNC control.
• Step 2: Load your machining program via USB or Ethernet.
• Step 3: Set up tools and offsets using the intuitive interface.
• Step 4: Utilize conversational programming or import G-code for program creation.
• Step 5: Preview and verify toolpaths with the program preview feature.
• Step 6: Start machining operations and monitor performance.

BENEFITS OF USING Jet JTM-1254VS Mill w/3-Axis ACU-RITE G2 MILLPOWER CNC & APDB (691942):

• Precision and Efficiency: Achieve precise machining results efficiently.
• Customizable CNC Controls: Choose between 2 or 3-axis control configurations.
• Versatility: Suitable for a variety of materials and machining tasks.
• Durable Construction: Meehanite® cast iron base and precision components ensure long-term reliability.

FEATURES:

• Meehanite® cast iron base for stability.
• Rigorously machined head and bearings for accuracy.
• 5 HP motor, NMTB #40 spindle taper, air power drawbar.
• ACU-RITE G-2 MILLPWR G2 with extensive features.
• Three T-slots, Turcite B on X & Y Axes, adjustable gibs, CSA/CUS certified, automatic lubrication, two 115V outlets.
