Jet JTM-1254VS Mill w/200S 3X-K X/Y PFD APDB (698058)

Description

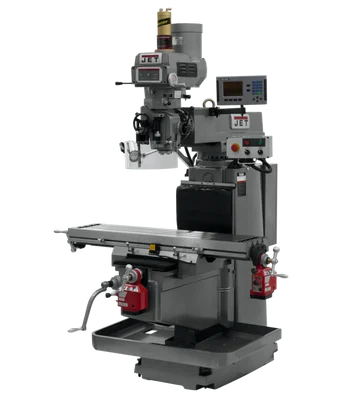

The Jet JTM-1254VS Mill w/200S 3X-K X/Y PFD APDB (698058) is a heavy-duty vertical milling machine designed for professional machinists and serious hobbyists. This versatile mill boasts a spacious 12″ x 54″ table and a powerful 5 HP motor, making it capable of handling a wide range of milling tasks.

KEY FEATURES AND BENEFITS:

• Precision and Control:
  • Rigid base constructed from Certified Meehanite® Castings minimizes vibration and ensures machining accuracy.
  • Precision bored and honed milling head delivers smooth operation.
  • High-precision Class 7 spindle bearings enhance performance.
  • Three-stage power downfeed with automatic stop for precise depth control.
• Automated Efficiency:
  • X and Y-axis power feeds allow hands-free table movement, improving efficiency and reducing operator fatigue.
  • Air power drawbar simplifies tool changes, eliminating manual wrenching.
• Enhanced User Experience:
  • ACU-RITE 200S digital readout system provides clear and accurate position indicators for improved control and repeatability.
  • Head tilts 90° right and left, and 45° forward and backward, enhancing versatility for various machining angles.
• Built to Last:
  • Engineered for durability with precision hardened and ground ways and table.
  • Three precision-ground T-slots on the table provide secure workpiece clamping.
  • Adjustable gibs throughout allow fine-tuning for optimal performance over time.

SPECIFICATIONS:

• Table Size: 12″ x 54″
• Motor: 5 HP
• Spindle Speed: Variable
• Spindle Taper: NT40
• Digital Readout: ACU-RITE 200S
• X/Y Power Feed: Yes
• Air Power Drawbar: Yes
• Head Tilt: 90° right and left, 45° forward and backward
• Applications: Facing, Boring, Slotting, Pocketing, Keyway milling, and more

HOW TO USE:

Follow these steps for efficient operation of the Jet JTM-1254VS Mill w/200S 3X-K X/Y PFD APDB:

1. Ensure the machine is properly leveled and securely positioned.
2. Set the desired spindle speed according to the material and cutting requirements.
3. Utilize the ACU-RITE 200S digital readout for precise positioning of the workpiece.
4. Activate the X and Y-axis power feeds to automate table movement for hands-free operation.
5. Use the air power drawbar for quick and efficient tool changes as needed during operations.

BENEFITS OF USING Jet JTM-1254VS Mill w/200S 3X-K X/Y PFD APDB (698058):

• Enhances machining accuracy with precision components and digital readout.
• Improves productivity with automated features like power feeds and tool change systems.
• Provides versatility for a wide range of metalworking applications.
• Ensures durability and longevity with robust construction and adjustable gibs.

FEATURES:

• Rigid Meehanite® Castings Base
• Precision Bored and Honed Milling Head
• High-Precision Class 7 Spindle Bearings
• Three-Stage Power Downfeed with Automatic Stop
• X and Y-Axis Power Feeds
• Air Power Drawbar
• ACU-RITE 200S Digital Readout System
• Head Tilt Capability (90° right and left, 45° forward and backward)
• Precision Hardened and Ground Ways and Table
• Three Precision-Ground T-Slots on Table
• Adjustable Gibs Throughout
