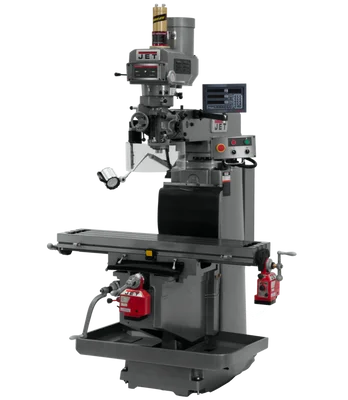

Jet JTM-1254RVS Mill w/NEWALL DP700 3X (Q) DRO XY Pwrfd & APD (698141)

Description

Jet JTM-1254RVS Mill w/NEWALL DP700 3X (Q) DRO XY Pwrfd & APD (698141) is a heavy-duty vertical milling machine designed for precision and efficiency. Featuring a robust cast iron construction, powerful motor, and advanced controls, this machine is ideal for a wide range of metalworking applications.

KEY FEATURES AND BENEFITS:

• Precision and Accuracy: Equipped with a NEWALL DP700 digital readout (DRO) for precise measurements and control.
• Efficiency: X and Y power feeds enhance productivity and reduce operator fatigue.
• Durability: Certified Meehanite castings provide exceptional stability and longevity.
• Versatility: Variable speed range accommodates various cutting tasks.
• Convenience: Air drawbar, quick nut spindle feed, and automatic lubrication simplify operation and maintenance.

SPECIFICATIONS:

• Model Number: JTM-1254RVS
• Spindle Taper: R-8
• Table Size: 12″ x 54″
• Motor: 5HP, 230/460V, 3Ph
• Quill Diameter: 4-1/8″
• Spindle Speed Range: 80-3800 RPM
• Table Longitudinal Travel: 33-7/8″
• Table Cross Travel: 15-1/3″
• Overall Dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″
• Weight: 3969 lbs
• And more… (refer to the detailed specifications provided earlier)

HOW TO USE:

1. Setting Up:
   • Ensure the machine is securely placed on a level surface.
   • Connect the machine to the power supply and compressed air source.
   • Check all safety guards and emergency stops are in place.
2. Basic Operation:
   • Turn on the power switch and allow the machine to warm up.
   • Zero the DRO for accurate measurements.
   • Select the desired spindle speed and feed rate.
   • Secure the workpiece to the machine table using clamps or vices.
   • Engage the power feed for automatic movement of the table.
   • Control the depth of cut and feed rate using the machine controls.
3. Tool Changes:
   • Bring the spindle to a complete stop.
   • Engage the spindle brake.
   • Use the drawbar to remove the tool from the spindle.
   • Install the new tool and tighten the drawbar securely.
4. Maintenance:
   • Regularly clean the machine and remove chips.
   • Lubricate moving parts according to the manufacturer’s recommendations.
   • Check for wear and tear on components and replace as needed.

BENEFITS OF USING Jet JTM-1254RVS Mill w/NEWALL DP700 3X (Q) DRO XY Pwrfd & APD (698141):

• Enhanced Productivity: Power feeds and efficient operation save time and effort.
• Precise and Accurate: Cuts thanks to the NEWALL DRO and rigid construction.
• Durable and Reliable: Performance for long-term use.
• Versatile Capabilities: For handling various metalworking tasks.
• User-Friendly Operation: With intuitive controls and automatic features.
• Improved Safety: With emergency stops and safety guards.

FEATURES:

• NEWALL DP700 digital readout
• X and Y power feeds
• Air drawbar
• Quick nut spindle feed
• Automatic lubrication
• Certified Meehanite castings
• Variable speed range
