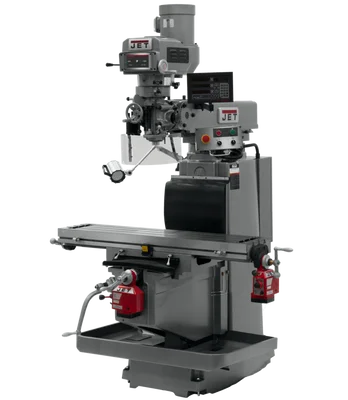

Jet JTM-1254RVS Mill w/NEWALL DP700 3X (Q) DRO XY Powerfeeds (698140)

Description

Jet JTM-1254RVS Mill w/NEWALL DP700 3X (Q) DRO XY Powerfeeds (698140) is a heavy-duty vertical milling machine designed for precision and efficiency. Built with durability and performance in mind, this machine features a robust construction, powerful motor, and advanced controls.

KEY FEATURES AND BENEFITS:

• Newall DP700 Digital Readout (DRO): Provides accurate measurements for precise machining.
• X and Y Power Feeds: Increases efficiency and productivity through automated movement.
• Automatic Lubrication: Ensures optimal machine performance and extends component life.
• Quick Nut Spindle Feed: Allows for rapid adjustments and tool changes.
• Certified Meehanite Castings: Offers exceptional strength and rigidity.
• Precision Ground Ways and Table: Provides smooth and accurate movement.

SPECIFICATIONS:

• Spindle Taper: R-8
• Table Size: 12″ x 54″
• Motor Power: 5 HP
• Quill Diameter: 4-1/8″
• Range of Spindle Speeds: 80-3,800 RPM
• Table Longitudinal Travel: 33-7/8″
• Table Cross Travel: 15-1/3″
• Overall Dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″
• Weight: 3969 lbs
• For complete specifications, please refer to the user manual.

HOW TO USE:

1. Setting Up the Machine:
   • Ensure the machine is placed on a stable and level surface.
   • Connect the machine to a power supply according to the electrical specifications.
   • Check the coolant system and ensure it is filled with the appropriate coolant.
   • Inspect the machine for any loose parts or damage before operation.
2. Basic Operation:
   • Turn on the power switch and allow the machine to warm up for a few minutes.
   • Zero the DRO to establish a reference point.
   • Select the desired spindle speed and feed rate.
   • Secure the workpiece to the machine table using clamps or vices.
   • Engage the power feed for automatic movement of the table.
   • Carefully operate the machine controls to perform the desired milling operations.
3. Important Safety Precautions:
   • Always wear appropriate safety gear, including eye protection, ear protection, and gloves.
   • Never reach into the machine while it is in operation.
   • Use caution when handling sharp tools.
   • Follow the manufacturer’s safety guidelines.

BENEFITS OF USING Jet JTM-1254RVS Mill w/NEWALL DP700 3X (Q) DRO XY Powerfeeds (698140):

• Increased Productivity: Power feeds and efficient operation save time and effort.
• Improved Accuracy: The Newall DP700 DRO ensures precise measurements and cuts.
• Enhanced Durability: The robust construction and high-quality components provide long-lasting performance.
• Versatility: Suitable for a wide range of metalworking applications.
• Ease of Use: User-friendly controls and automatic features simplify operation.

FEATURES:

• Newall DP700 Digital Readout (DRO)
• X and Y Power Feeds
• Automatic Lubrication
• Quick Nut Spindle Feed
• Certified Meehanite Castings
• Precision Ground Ways and Table
• Spindle Brake
• Coolant System
• Work Lights
