Description

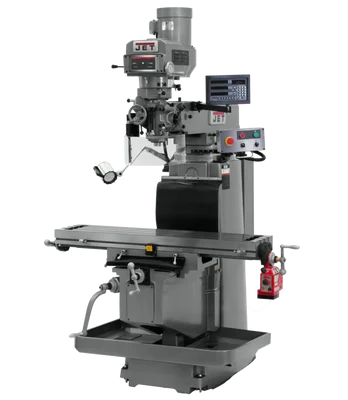

Jet JTM-1254RVS Mill w/ NEWALL DP700 3X (K) DRO & X Powerfeed (698132) is a heavy-duty 12″ x 54″ variable speed vertical milling machine designed for professional metalworking applications. It combines durability, strength, and precision engineering to deliver high-quality results. The machine features a cast iron construction for stability and vibration dampening, along with a high-precision R-8 spindle taper for compatibility with a wide range of tooling.
KEY FEATURES AND BENEFITS
- Precision Machining: The JTM-1254RVS boasts precision-bored and honed milling head, Class 7 spindle bearings, and hardened and ground ways and table for accurate cuts and smooth operation.
- Enhanced Productivity: The X-axis powerfeed automates repetitive tasks, increasing efficiency and reducing manual labor.
- Digital Readout (DRO): The Newall DP700 3X (K) DRO provides real-time position data on three axes (X, Y, and Knee) for precise measurements and control.
- Easy Operation: Features like quick-nut spindle feed, automatic lubrication, and adjustable gibs ensure user-friendly operation and minimize maintenance requirements.
- Durable Construction: The JET exclusive new casting allows for easier machine leveling without lifting, and the overall cast iron construction provides long-lasting performance.
SPECIFICATIONS
- Spindle Taper: R-8
- Table Size: 12″ x 54″
- Spindle Travel: 5″
- Range of Spindle Speeds: 80 – 3,800 RPM
- Motor: 5 HP, 230/460V, 3-Phase
- Weight: 3,969 lbs
HOW TO USE
- Installation: Following the manufacturer’s instructions, securely mount the milling machine on a stable and level surface. Ensure proper electrical connection based on voltage requirements (230V or 460V).
- Workpiece Setup: Secure the workpiece onto the milling table using clamps or a vise, ensuring proper alignment and rigidity.
- Tooling Selection: Select the appropriate cutting tool based on the material and desired operation (drilling, milling, facing, etc.) and install it securely into the spindle taper.
- Speed and Feed Selection: Refer to the manufacturer’s recommendations or cutting tool charts to set the optimal spindle speed and feed rate for the specific material and operation.
- Operation: Engage the spindle motor and powerfeed (if applicable) and begin machining the workpiece according to your design specifications. Utilize the DRO system for precise positioning and control.
BENEFITS OF USING Jet JTM-1254RVS Mill w/ NEWALL DP700 3X (K) DRO & X Powerfeed (698132)
- High-Quality Machining: Delivers precise cuts and finishes for professional metalworking projects.
- Increased Efficiency: The X-axis powerfeed and user-friendly features enhance productivity.
- Improved Accuracy: The DRO system and precision components ensure accurate positioning and control.
- Reduced Maintenance: Automatic lubrication and easy adjustments minimize maintenance needs.
- Durability and Stability: Cast iron construction provides long-lasting performance and vibration dampening.
FEATURES
- Certified Meehanite Castings for stability and vibration dampening
- Precision Bored and Honed Milling Head for accurate cuts
- High Precision Class 7 Spindle Bearings for smooth operation
- Quick Spindle Feed Nut for efficient tool changes
- Three-stage Power Downfeed with Automatic Stop for precise depth control
- Heavy-duty Spindle Brake for rapid stopping power
- Precision Hardened and Ground Ways and Table for smooth movement
- Three Precision Ground T-Slots for secure workpiece clamping
- Turcite B on X & Y Axis for reduced friction and wear
- Adjustable Gibs Throughout for maintaining tight tolerances
- CSA/CUS Certified for electrical safety standards compliance
- Spindle Guard for operator safety
- Automatic Lubrication (every 180 minutes) for reduced maintenance
- JET Exclusive New Casting for easier machine leveling
- Two 115V Outlets on Electrical Box for powering accessories (Powerfeeds only)
- Standard Equipment: Spindle Safety Guard, LED Machine Lamp, Dual Locks on Moveable Surfaces, Chip Pan, Draw Bar, Toolbox with Tools
