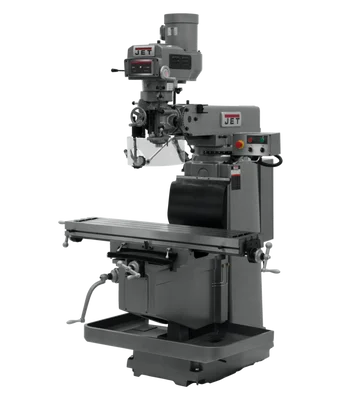

Jet JTM-1254RVS Mill w/ ACU-RITE 300S 3X (Q) DRO & XY Pwrfds (698177)

Description

Jet JTM-1254RVS Mill w/ ACU-RITE 300S 3X (Q) DRO & XY Pwrfds (698177) is a versatile and durable machine tool designed for precision machining applications. Equipped with an ACU-RITE 300S DRO and X&Y power feeds, this machine offers enhanced accuracy and efficiency.

KEY FEATURES AND BENEFITS

• Variable Speed: Offers a wide range of spindle speeds for various materials and cutting conditions.
• ACU-RITE 300S DRO: Provides precise digital readouts for X, Y, and Z axes, improving accuracy and reducing setup time.
• X&Y Power Feeds: Enhances productivity and operator comfort by automating feed movements.
• Heavy-Duty Construction: Built with robust materials for long-lasting performance and rigidity.
• Automatic Lubrication: Maintains critical components in optimal condition, extending machine life.

SPECIFICATIONS

• Spindle Taper: R-8
• Table Size: 12″ x 54″
• Quill Diameter: 4-1/8″
• Spindle Speed Range: 80-3,800 RPM
• X-Axis Travel: 33-7/8″
• Y-Axis Travel: 15-1/3″
• Z-Axis Travel: 5″
• Motor: 5HP, 230/460V, 3Ph
• Weight: 3696 lbs.
• Dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″

HOW TO USE

• Set Up the Workpiece: Securely clamp the workpiece to the machine table using appropriate clamps and fixtures.
• Select the Desired Spindle Speed: Adjust the variable speed control to match the material and cutting tool being used.
• Zero the DRO: Set the digital readouts to zero at the starting position of the workpiece.
• Program the Desired Cutting Path: Input the cutting parameters (feed rate, depth of cut, etc.) into the DRO or machine control.
• Engage Power Feeds: Activate the X and Y power feeds as needed for automated movement.
• Start the Milling Operation: Engage the spindle and begin the cutting process, monitoring the machine and workpiece for any issues.
• Coolant Application: Apply coolant to the cutting tool as necessary to prevent overheating and improve tool life.
• Complete the Machining Process: Continue the milling operation until the desired dimensions and surface finish are achieved.
• Turn Off the Machine: Stop the spindle and power feeds, and safely remove the workpiece.

BENEFITS OF USING Jet JTM-1254RVS Mill w/ ACU-RITE 300S 3X (Q) DRO & XY Pwrfds (698177):

• Increased Productivity: The X&Y power feeds and variable speed capabilities enhance machining efficiency.
• Improved Accuracy: The ACU-RITE DRO provides precise measurements and reduces errors.
• Versatility: Handles a wide range of materials and cutting applications.
• Durability: Built to withstand heavy use and provide long-term reliability.
• Ease of Operation: User-friendly controls and automatic lubrication simplify machine maintenance.

FEATURES

• Variable Speed
• ACU-RITE 300S DRO
• X&Y Power Feeds
• Heavy-Duty Construction
• Automatic Lubrication
• R-8 Spindle Taper
• Large Work Table
