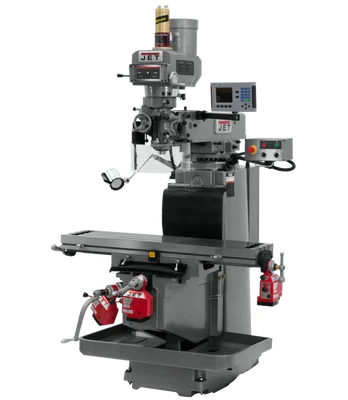

Jet JTM-1254RVS Mill w/200S X/Y/Z POWERFEED APDB (698113)

Description

Jet JTM-1254RVS Mill w/200S X/Y/Z POWERFEED APDB (698113) is a heavy-duty vertical milling machine designed for professional machinists who demand precision and durability. This versatile mill features a rigid Meehanite® cast iron base that minimizes vibration and ensures machining accuracy. The precision-bored and honed milling head houses high-quality Class 7 spindle bearings for smooth operation and extended tool life.

KEY FEATURES AND BENEFITS:

• Rigid Construction: Meehanite® cast iron base for minimized vibration and precision machining.
• Precision Machining: Precision-bored and honed milling head with high-quality Class 7 spindle bearings.
• User-friendly Operation: Quick-action spindle feed nut and automatic lubrication system for efficient operation and reduced maintenance.
• ACU-RITE 200S Digital Readout (DRO): Provides precise positioning on X, Y, and Z axes.
• Variable Speed Control and Power Feeds: Allows for efficient machining of a wide range of materials.
• Powerful Motor: 5 HP, 3-phase motor with variable spindle speeds from 80 to 3,800 RPM.
• Large Table: 12″ x 54″ table for accommodating sizable workpieces.
• Versatile Quill: 5-inch quill travel and 23-inch maximum distance between spindle and table.
• Safety Features: Spindle guard, spindle brake, and dual locks on all movable surfaces.
• Standard Equipment: Includes chip pan, drawbar, and toolbox with essential tools.

SPECIFICATIONS:

• Table Size: 12″ x 54″
• Spindle Speed Range: 80-3,800 RPM
• Spindle Travel (Quill): 5 inches
• Maximum Distance Spindle to Table: 23 inches
• Motor: 5 HP, 3-Phase

HOW TO USE:

Operate the Jet JTM-1254RVS 200S efficiently with these steps:

• Step 1: Adjust the variable speed control to match the material and cutting requirements.
• Step 2: Utilize the ACU-RITE 200S DRO for precise positioning on X, Y, and Z axes.
• Step 3: Maintain smooth operation with regular use of the automatic lubrication system.
• Step 4: Ensure safety and quick stops using the spindle brake and dual locks.
• Step 5: Optional: Enhance functionality with optional power feeds for automated movement.

BENEFITS OF USING Jet JTM-1254RVS Mill w/200S X/Y/Z POWERFEED APDB (698113):

• High-performance machine suitable for professional machining environments.
• Durable construction and precision machining components for reliable operation.
• Enhanced precision with ACU-RITE 200S DRO and variable speed control.
• User-friendly features for ease of operation and reduced maintenance.

FEATURES:

• Based on the above features, the Jet JTM-1254RVS 200S includes:
• Rigid Meehanite® cast iron base for minimized vibration.
• Precision-bored and honed milling head with Class 7 spindle bearings.
• Quick-action spindle feed nut and automatic lubrication system.
• ACU-RITE 200S Digital Readout (DRO) for precise positioning.
• Variable speed control and power feeds for efficient machining.
• Safety features including spindle guard, spindle brake, and dual locks.
• Standard equipment such as chip pan, drawbar, and toolbox with tools.
