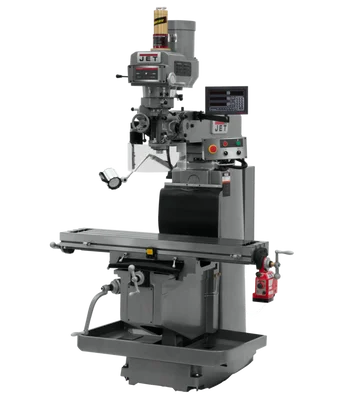

Jet JTM-1254RVS DP700 3X-Q X PFD APDB Mill (698139)

Description

The Jet JTM-1254RVS DP700 3X-Q X PFD APDB Mill (698139) is a heavy-duty vertical milling machine designed for professional machinists and workshops. It combines robust construction with precision engineering to deliver high-quality results.

This powerful machine boasts a spacious 12″ x 54″ table for handling various projects. The variable speed spindle offers a wide range of speeds (80-3,800 RPM) for tackling different materials. The R-8 spindle taper provides compatibility with a broad selection of tooling.

KEY FEATURES AND BENEFITS:

• Automatic Lubrication: Ensures smooth operation and reduces maintenance needs.
• Quick Nut Spindle Feed: Simplifies adjustments for efficient workflow.
• Newall DP700 Digital Readout (3-axis): Provides precise positioning control for all three axes (X, Y, Quill).
• X-axis Powerfeed: Automates table movement along the X-axis for repetitive tasks.
• Pneumatic Power Drawbar: Simplifies tool changes.
• Certified Meehanite Castings: Offer exceptional rigidity and vibration dampening for improved machining accuracy.
• Adjustable Gibs Throughout: Maintain tight tolerances for long-lasting performance.
• Easy Leveling System: JET’s innovative design allows for convenient machine leveling without lifting.

SPECIFICATIONS:

• Product: Jet JTM-1254RVS DP700 3X-Q X PFD APDB Mill (698139)
• Spindle Taper: R-8
• Table Size: 12″ x 54″
• Spindle Speeds: 80 – 3,800 RPM
• Digital Readout: Newall DP700 (3-axis)
• Powerfeed: X-Axis
• Power Draw Bar: Pneumatic
• Motor: 5 HP, 230/460V, 3 Phase
• Overall Dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″ (LxWxH)
• Weight: 3969 lbs.

HOW TO USE:

• Step 1: Position the milling machine on a stable, level surface and secure it using the provided mounting hardware.
• Step 2: Connect the machine to a suitable 230/460V three-phase power source, ensuring the voltage matches the prewired configuration.
• Step 3: Adjust the table to the desired height and secure the workpiece using clamps on the T-slots for stability.
• Step 4: Select the appropriate spindle speed from the range of 80-3,800 RPM based on the material and milling operation.
• Step 5: Use the X-axis powerfeed to automate the table movement during milling operations for consistent results.
• Step 6: Utilize the pneumatic power drawbar for quick and easy tool changes.
• Step 7: After milling, turn off the machine, clean the work area, and check the automatic lubrication system for maintenance.

BENEFITS OF USING JET JTM-1254RVS DP700 3X-Q X PFD APDB MILL:

• Delivers precise and accurate milling for professional applications.
• Handles a variety of materials, including metals and plastics.
• Offers versatile features like a large table and multiple speed options for different milling tasks.
• Robust construction ensures long-lasting performance and reliability.
• User-friendly design with safety features and convenient controls.

FEATURES:

• Certified Meehanite castings for stable and vibration-free operation.
• Variable speed control with a range of 80-3,800 RPM for precise control.
• Large 12″ x 54″ table with T-slots for secure workpiece clamping.
• R-8 spindle taper for compatibility with a variety of tooling.
• Newall DP700 digital readout (3-axis) for precise positioning control.
• X-axis powerfeed for enhanced feed control and efficiency.
• Automatic lubrication system for reduced maintenance.
• Quick nut spindle feed for fast adjustments.
• Pneumatic power drawbar for easy tool changes.
• Precision-bored and honed milling head for optimal spindle alignment.
• High-precision Class 7 spindle bearings for smooth operation.
• Three-stage power downfeed with automatic stop for controlled feeding.
• Heavy-duty spindle brake for quick stopping power.
• Precision-hardened and ground ways and table for smooth travel and minimal wear.
• Three precision-ground T-slots for secure workpiece clamping.
• Turcite B on X & Y axes for enhanced wear resistance.
• LED machine lamp for improved workspace visibility.
• Dual locks on movable surfaces for added stability.
• Chip pan for easy waste collection.
• Drawbar and toolbox with tools included.
• Meets CSA/CUS electrical safety standards.
