Description

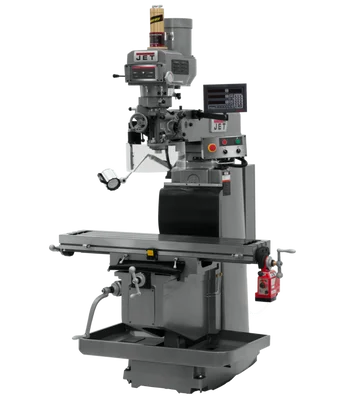

The Jet JTM-1254RVS DP700 3X-K X PFD APDB Mill (698133) is a powerful and versatile vertical milling machine designed for professional machinists and demanding workshop applications. This machine combines robust construction with precision engineering to deliver high-quality results.
KEY FEATURES AND BENEFITS:
- Durable Construction: Rigid cast iron base and column dampen vibration for enhanced machining accuracy. Certified Meehanite® castings ensure stability.
- Variable Speed Control: Wide range of spindle speeds (80-3,800 RPM) for versatility in handling various materials and applications.
- Precision Machining: Precision-ground ways and table surfaces for smooth travel and accurate positioning of your workpiece.
- Digital Readout (DRO): Newall DP700 DRO system provides precise digital readouts of X, Y, and Z-axis movements.
- Power Feed and Air Drawbar: X-axis power feed for automated movement and air power drawbar for simplified tool changes.
- Large Table Capacity: Spacious 12″ x 54″ table accommodates a wide range of workpieces.
- Automatic Lubrication: Continuous lubrication system reduces maintenance.
- User-Friendly Design: Quick-nut spindle feed, adjustable gibs, and exclusive casting design for ease of use and simplified leveling.
- Safety and Standards: Includes spindle guard, LED lamp, chip pan, and meets CSA/CUS electrical safety standards.
SPECIFICATIONS:
- Spindle Taper: R-8
- Spindle Speeds: 80 – 3,800 RPM
- Quill Travel: 5″
- Table Cross Travel: 15-1/3″
- Motor: 5 HP
- Weight: Around 3,000 lbs (may vary)
- Additional Specifications: [Insert link to the specifications list you captured previously]
HOW TO USE:
Follow these steps for efficient operation of the Jet JTM-1254RVS DP700 3X-K X PFD APDB Mill:
- Ensure the machine is securely leveled and all safety guards are in place.
- Power on the machine and adjust the spindle speed as per material specifications.
- Use the Newall DP700 DRO to precisely position your workpiece.
- Engage the X-axis power feed for automated table movement during machining.
- Regularly monitor and refill the lubrication system to maintain smooth operation.
- After use, clean the work area and ensure all tools are safely stored.
BENEFITS OF USING Jet JTM-1254RVS DP700 3X-K X PFD APDB Mill (698133):
- Enhanced precision and accuracy in machining tasks.
- Improved efficiency with automated features like power feed and tool changes.
- Long-term durability and reliability backed by robust construction and high-quality components.
- Compliance with safety standards ensuring operator security.
FEATURES:
- Durable construction with cast iron base and Meehanite® castings
- Wide range of spindle speeds for versatility
- Precision-ground ways and table surfaces for accuracy
- Newall DP700 DRO system for precise digital readouts
- X-axis power feed and air power drawbar for automation
- Spacious table capacity and automatic lubrication system
- User-friendly design with quick-nut spindle feed and adjustable gibs
- Safety features and meets electrical safety standards
