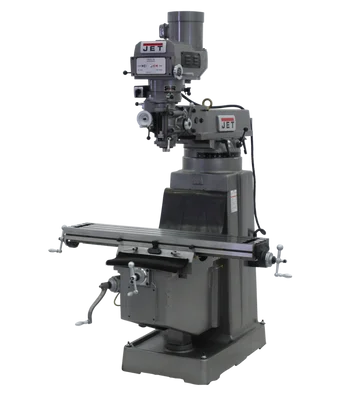

Jet JTM-1050VS2 Mill w/3-Axis Newall DP700 DRO (Quill) (691207)

Description

The JET JTM-1050VS2 Mill with 3-Axis Newall DP700 DRO (Quill) is a versatile and powerful vertical milling machine built for precision metalworking applications. Its core features ensure stability, accuracy, and ease of use:

KEY FEATURES AND BENEFITS:

• Solid Construction: The base is constructed from Meehanite castings, a vibration-dampening material that minimizes chatter during operation. The worktable is a large and hardened steel surface (10″ x 50″) to support your projects.
• Precise Performance: High-precision class 7 bearings support the spindle for optimal runout and cutting accuracy. Precision-bored and honed milling heads deliver clean cuts. The variable speed motor allows you to adjust cutting speeds for different materials (70 – 3800 RPM).
• User-Friendly Controls: The JET JTM-1050VS2 Mill features a three-stage power downfeed with automatic stop for controlled feeding of the cutting tool. The quill is large diameter and chrome-plated for rigidity. This specific model (#691207) also includes a Newall DP700 3-axis DRO system for precise positioning of the cutting tool along the X, Y, and Z axes.
• Additional Features: The JET JTM-1050VS2 Mill is packed with features to enhance usability and durability. Chrome lead screws and Turcite B on the X and Y-axis ensure smooth travel. The spindle head is internally cooled to prevent thermal expansion and maintain accuracy. An integrated coolant system (pump not included) aids in chip removal. Locks on all movable surfaces and adjustable gibs throughout the machine allow for precise adjustments and minimize wear.

SPECIFICATIONS:

• **Base Material:** Meehanite castings
• **Table Size:** 10″ x 50″
• **Bearings:** High-precision class 7
• **Variable Speed Range:** 70 – 3800 RPM
• **Power Downfeed:** Three-stage with automatic stop
• **DRO:** Newall DP700 3-axis system
• **Quill:** Large diameter, chrome-plated
• **Lead Screws:** Chrome on X and Y axes
• **Surfacing:** Turcite B on X and Y axes
• **Coolant System:** Integrated (pump not included)
• **Overall Dimensions:** N/A (not provided)
• **Weight:** N/A (not provided)
• **Capacity:** N/A (specific capacity not provided)

HOW TO USE:

1. Initial Setup: Position the machine on a stable, level surface and ensure proper grounding.
2. Power On: Connect to the appropriate power source and switch on the main power.
3. Adjust Speed: Set the spindle speed using the variable speed control to match the material you are working with.
4. Install Tool: Secure the appropriate cutting tool in the spindle.
5. Setup Workpiece: Place your workpiece on the worktable and secure it with clamps or fixtures.
6. Positioning: Use the Newall DP700 3-axis DRO for accurate positioning of the cutting tool along the X, Y, and Z axes.
7. Operate Machine: Follow your machining plan, utilizing the power downfeed for controlled tool feeding and the DRO for precision.
8. Coolant Management: Ensure the integrated coolant system is functional if required for your machining process.
9. Power Down: After machining, turn off the machine and disconnect the power.
10. Maintenance: Clean the machine regularly and check lubrication and gibs for optimal performance.

BENEFITS OF USING JET JTM-1050VS2 Mill with 3-Axis Newall DP700 DRO (Quill):

• Provides stable and precise metalworking capabilities
• Offers versatility with variable speed control for different materials
• Enhances accuracy with the integrated Newall DP700 DRO
• Built for long-term use with high-quality materials and construction
• Easy to maintain with built-in lubrication and coolant systems

FEATURES:

• Durable Meehanite cast iron base for stability
• Large and hardened steel worktable for ample workspace
• High-precision class 7 spindle bearings for accurate cutting
• Variable speed motor for flexible operations
• Newall DP700 3-axis DRO for precise positioning
• Chrome lead screws and Turcite B surfacing for smooth movement
• Integrated coolant system for effective chip removal
