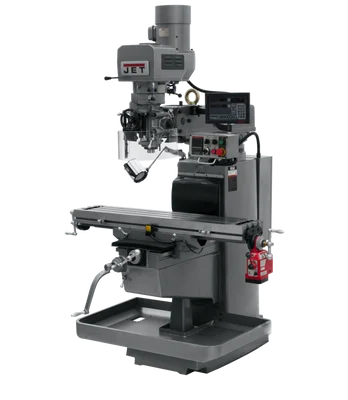

Jet JTM-1050EVS2 Mill Newall DP700 3X (Q) DRO & X Powerfeed (690644)

Description

The Jet JTM-1050EVS2 Mill Newall DP700 3X (Q) DRO & X Powerfeed (690644) is a heavy-duty machine built for reliable performance in workshops and machine shops. Its Meehanite® cast iron construction with enhanced ribbing offers a rigid and stable base for precise milling operations. The variable speed motor allows for a wide range of cutting applications, from delicate work with small cutters to heavy-duty projects requiring larger tools.

KEY FEATURES AND BENEFITS:

• Swing-Away Control Box: Features an emergency stop button for easy access and prioritizes operator safety.
• Effortless Leveling: The innovative design of the machine base allows for simple leveling without lifting the entire machine, saving time and effort.
• Automatic Oiler: Ensures proper lubrication at set intervals, reducing maintenance requirements and extending the machine’s lifespan.
• Convenient Electrical Box: Relocated with two 115V outlets for powering additional accessories near the machine.
• Heavy-Duty Spindle Brake: Stops the spindle and cuts power to prevent accidental startups, enhancing operator safety.
• Class 7 Spindle Bearings: Provide maximum rigidity during heavy cutting tasks, ensuring accuracy and tool longevity.
• Internally Cooled Spindle Head: Extends the lifespan of bearings, belts, and the motor, ensuring durable performance.
• Precision-Ground Table and Ways: Minimize friction and ensure accurate cuts for consistent machining results.
• Turcite-B Coating: Applied on the X and Y-axis to reduce vibration and allow for smooth movements of the worktable and headstock.

SPECIFICATIONS:

• Digital Readout (DRO): Newall DP700 with readouts on X, Y, and Quill axes for precise tool positioning.
• Powerfeed: X-Axis for automated table movement and increased productivity.
• Table Size: 10 x 50 inches provides ample working space for various milling tasks.
• Quill Diameter: 3-3/8 inches ensures compatibility with a wide range of tools and accessories.
• Spindle Speeds: Variable from 60 to 4,500 RPM to accommodate different materials and cutting requirements.
• Spindle Travel: 5 inches for versatile machining capabilities.

HOW TO USE:

• Step 1: Position the milling machine on a stable, level surface and adjust the base for proper leveling.
• Step 2: Connect the machine to a suitable power supply (230V, 3-phase) to ensure safe operation.
• Step 3: Select the desired spindle speed using the variable speed control, choosing between 60 and 4,500 RPM.
• Step 4: Secure your workpiece on the 10 x 50-inch table using clamps or fixtures for stability during milling.
• Step 5: Use the Newall DP700 DRO to precisely position the cutting tool on the X, Y, and Quill axes.
• Step 6: Engage the X-axis powerfeed for automated feeding, reducing manual effort and improving consistency.
• Step 7: Ensure the automatic oiler is set to provide consistent lubrication for the machine’s components.
• Step 8: Utilize the heavy-duty spindle brake and swing-away safety shield to maintain a safe working environment.
• Step 9: Use the LED work lamp to illuminate the work area for better visibility during machining.

BENEFITS OF USING THE Jet JTM-1050EVS2 Mill Newall DP700 3X (Q) DRO & X Powerfeed (690644):

• High Precision: The Newall DP700 DRO system ensures accurate tool positioning and consistent machining results.
• Enhanced Productivity: Features such as the X-axis powerfeed and automatic oiler streamline operations, reducing operator fatigue.
• Versatile Applications: The variable speed motor and spacious worktable accommodate a wide range of materials and cutting tasks.
• Long-Lasting Durability: The robust Meehanite castings and internally cooled spindle head contribute to the machine’s longevity.
• Improved Safety: Safety features like the heavy-duty spindle brake and swing-away safety shield ensure a secure working environment.
• Convenient Access: The relocated electrical box with 115V outlets provides easy access to power for additional tools and accessories.

FEATURES:

• Meehanite® Cast Iron Base: Provides a rigid and stable foundation for precise milling operations.
• Variable Speed Control: Offers spindle speeds from 60 to 4,500 RPM, catering to various materials and cutting needs.
• Newall DP700 DRO: Delivers accurate digital readouts for X, Y, and Quill axes, simplifying tool positioning and machining.
• X-Axis Powerfeed: Automates table movement for efficient material feeding and reduced operator effort.
• Pneumatic Drawbar: Facilitates quick tool changes, enhancing workflow and productivity.
• 5-Inch Quill Travel: Provides flexibility for a wide range of workpiece sizes and machining tasks.
• Safety Features: Includes a heavy-duty spindle brake and a swing-away safety shield for added operator protection.
• Automatic Lubrication: Ensures consistent lubrication for critical machine components, reducing maintenance needs.
• LED Work Lamp: Provides proper lighting for accurate and safe machining operations.
• Relocated Electrical Box: Includes 115V outlets for convenient power access to tools and accessories.
• Additional Accessories: Includes a chip pan, way covers, drawbar, and a toolbox with essential tools for comprehensive functionality.
