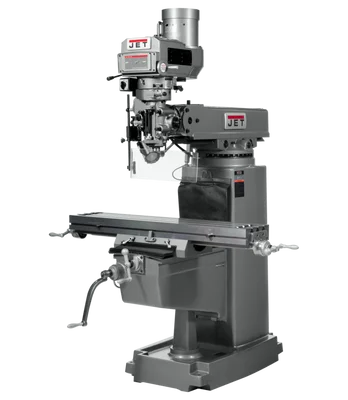

Jet JTM-1050 Mill w/Newall DP700 DRO w/X-Axis Powerfeed (691205)

Description

The Jet JTM-1050 Mill w/Newall DP700 DRO w/X-Axis Powerfeed (691205) is a top-of-the-line vertical mill designed for demanding metalworking applications. It boasts a powerful 3 HP motor with variable speeds (70-3800 RPM) for tackling a wide range of materials and cutting depths. The R-8 spindle taper allows for compatibility with a variety of tooling options.

KEY FEATURES AND BENEFITS:

• Precision and Control: This mill prioritizes precision with features like a Meehanite cast iron base for superior rigidity and vibration dampening. The hardened and ground table ensures a flat, smooth work surface for accurate workpiece positioning. High-precision Class 7 spindle bearings further contribute to cutting accuracy.
• Enhanced Functionality: The Jet JTM-1050VS2 features a user-friendly Newall DP700 DRO (Digital ReadOut) system that displays precise positioning data on the X and Y axes, streamlining operation and reducing errors. The X-axis powerfeed automates feeding of the workpiece during milling, ensuring consistent results and reducing operator fatigue.
• Durable Construction: Built to last, the JTM-1050VS2 utilizes chrome lead screws on the X and Y axes for long-lasting performance and Turcite B on these axes for smooth table movement. The large diameter quill provides increased rigidity and stability for the cutting tool. The heavy-duty motor drive and chrome-plated motor shaft ensure sufficient power and durability for demanding jobs.
• Additional Features:
  • Three-stage power downfeed with automatic stop for precise control
  • Heavy-duty spindle brake for quick stopping power
  • Locks on all movable surfaces prevent unintended movement
  • Hardened and ground square vertical knee ways and cross ways for smooth, accurate movement
  • Adjustable gibs throughout allow for fine-tuning of machine fit
  • Internal coolant tank (coolant pump not included) allows for cooling during operation
  • One-shot lubrication system simplifies maintenance
  • Way covers protect the machine ways from debris
  • Draw bar for securing tooling
  • Toolbox with tools for added convenience

SPECIFICATIONS:

• Motor Power: 3 HP
• Speed Range: 70-3800 RPM
• Spindle Taper: R-8
• Base Material: Meehanite cast iron
• Table Size: 10″ x 50″
• Spindle Bearings: High-precision Class 7
• DRO: Newall DP700 system on X and Y axes
• Powerfeed: X-axis
• Lead Screws: Chrome on X and Y axes
• Surfacing: Turcite B on X and Y axes
• Quill Diameter: Large, chrome-plated
• Internal Coolant Tank: Included (pump not included)
• Lubrication System: One-shot
• Way Covers: Included
• Dimensions: N/A (not provided)
• Weight: N/A (not provided)
• Capacity: N/A (specific capacity not provided)

HOW TO USE:

1. Initial Setup: Place the machine on a stable and level surface. Ensure proper electrical connections and grounding.
2. Power On: Switch on the main power supply to start the machine.
3. Speed Adjustment: Set the desired spindle speed using the variable speed control according to the material being machined.
4. Tool Installation: Insert and secure the cutting tool in the spindle using the draw bar.
5. Workpiece Setup: Position the workpiece on the table and secure it using clamps or fixtures.
6. Use DRO: Utilize the Newall DP700 DRO system to accurately position the cutting tool along the X and Y axes.
7. Operate the Machine: Follow your machining plan, using the power downfeed for controlled tool feeding and the DRO for precision.
8. Coolant System: Ensure the coolant system is operational if required for your task.
9. Shutdown: After completing the operation, turn off the machine and disconnect the power supply.
10. Maintenance: Regularly clean the machine and perform maintenance checks, including lubrication and adjustments.

BENEFITS OF USING Jet JTM-1050 Mill w/Newall DP700 DRO w/X-Axis Powerfeed (691205):

• Offers robust and precise metalworking capabilities for demanding applications
• Variable speed control allows flexibility for a variety of materials
• Newall DP700 DRO ensures accurate and efficient positioning
• Durable construction provides long-term reliability and performance
• Ease of maintenance with built-in lubrication and way covers

FEATURES:

• Durable Meehanite cast iron base for stability and vibration reduction
• Large and hardened steel table for ample workspace
• High-precision Class 7 spindle bearings for excellent cutting accuracy
• Variable speed motor for versatile operations
• Newall DP700 DRO for precise X and Y axis measurements
• Chrome lead screws and Turcite B surfacing for smooth table movement
• Internal coolant tank for efficient cooling (pump not included)
• Way covers to protect machine components from debris
