Jet JTM-1050 Mill ACU-RITE 200S DRO XYZ-Axis Pwrfds PRDB (690258)

Description

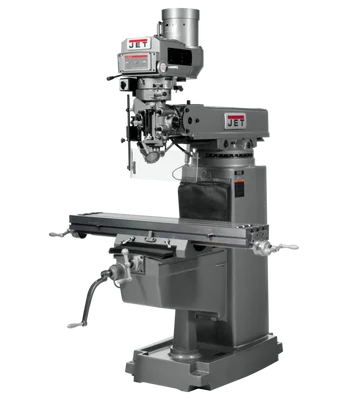

The Jet JTM-1050 Mill ACU-RITE 200S DRO XYZ-Axis Pwrfds PRDB (690258) is a robust and precise machine built for demanding milling applications in workshops and machine shops. Its Meehanite castings provide a stable base for vibration-free operation, while the large, hardened and ground table (10″ x 50″) ensures exceptional workpiece support.

KEY FEATURES AND BENEFITS:

• High-Performance Milling: The variable speed spindle (70-3,800 RPM) allows handling a wide range of materials with optimal cutting speeds. High precision class 7 spindle bearings deliver exceptional accuracy and rigidity for precise cuts, while the precision bored and honed milling head ensures smooth operation and consistent results. Power feeds on the X, Y, and Z axes automate movements for efficient and repeatable machining.
• User-Friendly Operation: The ACU-RITE 200S DRO (Digital ReadOut) provides digital readouts on all three axes for accurate positioning. The three-stage power downfeed with automatic stop simplifies depth control and ensures consistent results. A large diameter quill (3-3/8″) offers ample clearance for various tooling, and the internal coolant system (requires pump, not included) enables effective chip removal for improved tool life and finish.
• Durable Construction: Meehanite castings absorb vibration for smooth operation and increased machine life. The hardened and ground table provides a flat, wear-resistant surface for precise workholding. Chrome lead screws on the X and Y axes ensure smooth and reliable movement, while Turcite B on the X and Y axis ways offers low-friction wear surfaces for precise positioning. Adjustable gibs throughout allow for fine-tuning of machine fit for long-term accuracy.
• Additional Features: Includes spindle travel of 5 inches, head swivels 90 degrees left and right, 45 degrees front and back for angled cuts, a maximum distance between spindle and table of 19 inches to accommodate various workpieces, a heavy-duty motor (3 HP, 230/460V, 3-phase) providing ample power for demanding tasks, an internal coolant tank (requires pump, not included), a drawbar for easy tool changes, and a toolbox with tools for basic maintenance.

SPECIFICATIONS:

• Motor Power: 3 HP, 230/460V, 3-phase
• Table Size: 10” x 50” hardened and ground
• Spindle Speed Range: 70-3800 RPM
• Spindle Taper: R-8
• DRO System: ACU-RITE 200S Digital ReadOut (XYZ axes)
• Power Feeds: X, Y, and Z axes
• Power Drawbar: Included
• Maximum Distance from Spindle to Table: 19 inches
• Spindle Bearings: High-precision Class 7
• Lead Screws: Chrome-plated on X and Y axes
• Way Surfaces: Turcite B on X and Y axes
• Coolant System: Internal coolant tank (requires pump, not included)
• Lubrication: One-shot lubrication system
• Spindle Travel: 5 inches
• Head Movement: Swivels 90 degrees left and right, 45 degrees front and back

HOW TO USE:

1. Setup: Place the mill on a stable surface and connect it to a 230/460V power source. Ensure all safety guards are properly installed.
2. Power On: Turn on the machine and select the desired spindle speed using the variable speed control.
3. Load Tool: Secure the cutting tool in the spindle using the drawbar and ensure it is correctly aligned.
4. Position Workpiece: Secure the workpiece on the table and use the ACU-RITE 200S DRO to accurately position it along the X, Y, and Z axes.
5. Begin Machining: Use the power feeds on the X, Y, and Z axes for automated table movement. Adjust feed rates based on the material and the desired cutting depth.
6. Depth Control: Utilize the three-stage power downfeed for consistent and repeatable depth control during operations.
7. Use Coolant: Fill the internal coolant tank if required and direct the coolant to the cutting area to improve chip removal and extend tool life.
8. Shutdown: After use, turn off the machine, clean the table, and perform routine maintenance, including lubrication, to ensure longevity.

BENEFITS OF USING Jet JTM-1050 Mill ACU-RITE 200S DRO XYZ-Axis Pwrfds PRDB (690258):

• Delivers precise machining for industrial applications.
• Stable operation with a vibration-absorbing Meehanite cast iron base.
• Versatile spindle speeds for a variety of materials and cutting tools.
• Increased efficiency with integrated DRO and automated power feeds.
• Accommodates large and heavy-duty workpieces with a spacious table.
• Supports coolant applications to enhance machining quality and tool longevity.
• Simplified maintenance with a one-shot lubrication system and way covers.
• Comes with essential tools for immediate setup and operation.

FEATURES:

• Variable speed spindle ranging from 70 to 3800 RPM for versatile machining.
• Durable Meehanite cast iron base providing stability and vibration control.
• 10” x 50” hardened and ground table for precise operations and workholding.
• High-precision Class 7 spindle bearings for accurate and smooth cuts.
• ACU-RITE 200S Digital ReadOut for precise positioning across all three axes.
• Power feeds on X, Y, and Z axes for automated and efficient movement.
• Power drawbar for quick and easy tool changes.
• Three-stage power downfeed with automatic stop for accurate depth control.
• Internally cooled spindle head to prevent overheating and extend tool life.
• Chrome-plated lead screws on X and Y axes for durability and precision.
• Turcite B way surfaces on X and Y axes for smooth and wear-resistant movement.
• Internal coolant tank for effective cooling during heavy machining (pump not included).
• One-shot lubrication system for easy and thorough maintenance.
• Locks on all movable surfaces for added stability during operations.
• Includes drawbar and a toolbox with essential tools for immediate use.
