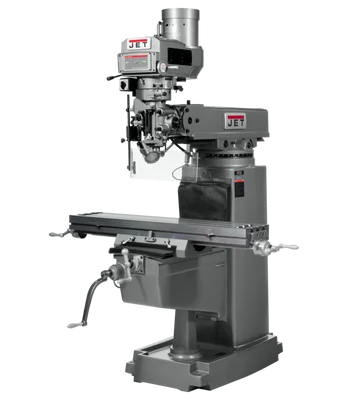

Jet JTM-1050 Mill ACU-RITE 200S DRO X-Axis & 8″ Riser Block (690216)

Description

The Jet JTM-1050 Mill ACU-RITE 200S DRO X-Axis & 8″ Riser Block (690216) is a precision milling machine designed for demanding applications in machine shops, fabrication facilities, and educational institutions. It features a heavy-duty construction with Meehanite castings for vibration dampening and rigidity, ensuring stable and precise machining. The hardened and ground table (10″ x 50″) enhances flatness and accuracy, while high precision Class 7 spindle bearings minimize runout for cleaner cuts.

KEY FEATURES AND BENEFITS:

• Meehanite castings: Provide vibration dampening and rigidity.
• Hardened and ground table (10″ x 50″): Ensures flatness and accuracy.
• High precision Class 7 spindle bearings: Minimize spindle runout for precise cuts.
• ACU-RITE 200S DRO on X-Axis: Allows for accurate measurements and control.
• X-axis powerfeed: Automates material feeding for improved efficiency.
• 8″ riser block: Increases working height for taller workpieces.
• Chrome lead screws on X and Y axis: Ensure smooth travel.
• Turcite B on X and Y ways: Provides wear resistance.
• Precision bored and honed milling head: Ensures spindle alignment.
• Large diameter quill: Adds rigidity during cutting operations.
• Spindle head internal cooling: Maintains thermal stability.
• Three horsepower motor: Delivers powerful cutting performance.

SPECIFICATIONS:

• Table Size: 10″ x 50″
• Spindle Taper: R8
• Quill Travel: 5 inches
• Range of Spindle Speeds: 70 – 3,800 RPM
• Motor: 3 HP, 230/460V, 3-Phase

HOW TO USE:

• Step 1: Power on the machine and set spindle speed according to material.
• Step 2: Utilize the ACU-RITE 200S DRO for precise positioning on the X-axis.
• Step 3: Engage the X-axis powerfeed for automated material feeding during cuts.
• Step 4: Adjust the 8″ riser block for accommodating taller workpieces as needed.
• Step 5: Utilize the internal cooling system for thermal stability during machining.

BENEFITS OF USING Jet JTM-1050 Mill ACU-RITE 200S DRO X-Axis & 8″ Riser Block (690216):

• Precision and Accuracy: High precision components ensure accurate machining.
• Efficiency: X-axis powerfeed and automated features enhance operational efficiency.
• Durability: Built with durable materials and components for long-lasting performance.

FEATURES:

• Smooth travel.
• Wear resistance.
• Spindle alignment.
• Rigidity during cutting.
• Thermal stability.
• Powerful cutting performance.
