Description

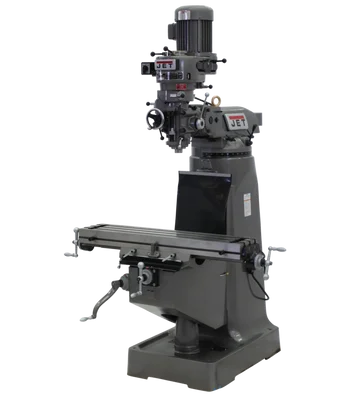

The Jet JTM-1 Mill 3-Axis Newall DP500 DRO X & Y-Axis Powerfeeds (692192) is a reliable and precise vertical milling machine engineered to meet the demands of professional machinists and fabricators. Constructed with Meehanite castings for unparalleled rigidity and equipped with advanced features like a 3-axis DRO and powerfeeds, this mill is designed to enhance productivity and accuracy in various metalworking applications.
KEY FEATURES AND BENEFITS:
- Meehanite Castings: The entire machine structure is built with Meehanite castings, renowned for their exceptional vibration dampening and stability, ensuring precise and consistent machining results.
- Newall DP500 DRO: The 3-axis digital readout system provides real-time feedback on the X, Y, and quill axes, allowing for precise positioning and repeatable accuracy.
- X and Y-Axis Powerfeeds: Automated table movement along these axes significantly reduces operator fatigue and enhances efficiency, especially during long production runs.
- High Precision Spindle: The Class 7 spindle bearings, combined with internal cooling, guarantee smooth and accurate rotation, while also extending the spindle’s lifespan.
- Three-Stage Power Downfeed: This feature offers controlled and consistent feed rates for simplified drilling operations.
SPECIFICATIONS:
- Digital Readout: Newall DP500
- Powerfeed: X and Y-Axis
- Table Size: 9 x 42 inches
- Quill Diameter: 3-3/8 inches
- Spindle Speeds: 16 speeds, ranging from 80 to 5,440 RPM
- Quill Down Feed Rates: .0015 – .003 – .006 IPR
- Spindle Travel: 5 inches
- Head Movement: 90° Right & Left, 45° Front & Back
- Max. Distance Spindle to Table: 17-1/2 inches
- Motor: 2 HP, 230V, 3Ph
- Overall Dimensions: 57 x 64 x 82 inches
- Weight: 2,200 lbs
HOW TO USE:
- Preparation: Securely mount your workpiece on the mill table using appropriate clamps or fixtures.
- Tool Selection: Choose the correct cutting tool for your desired operation (milling, drilling, boring, etc.).
- DRO Setup: Reference the DRO to establish your starting position and zero out the axes.
- Powerfeeds (if applicable): Engage the powerfeeds for automated table movement on the X and Y axes.
- Speed and Feed Selection: Refer to machining charts or calculations to determine the appropriate spindle speed and feed rate for your chosen tool and material.
- Operation: Begin your machining operation, using the DRO to monitor and adjust the tool’s position as needed.
- Lubrication: Ensure the one-shot lubrication system is functioning properly to keep critical components lubricated.
- Coolant (optional): If using coolant, activate the internal coolant system for optimal tool life and chip evacuation.
BENEFITS OF USING THE Jet JTM-1 Mill 3-Axis Newall DP500 DRO X & Y-Axis Powerfeeds (692192):
- Enhanced Precision: The Meehanite construction and 3-axis DRO ensure exceptional accuracy and repeatability.
- Increased Productivity: Powerfeeds and simplified controls minimize operator fatigue and streamline workflows.
- Extended Tool Life: The internally cooled spindle and one-shot lubrication system promote optimal tool performance and longevity.
- Versatility: The JTM-1 handles a wide range of milling, drilling, and boring operations with ease.
- Durability: The robust construction guarantees years of reliable service in demanding environments.
FEATURES:
- Precision bored and honed milling head
- Chromed large diameter quill
- Hardened and ground ways
- Satin chrome finished dials
- Heavy-duty splined motor drive
- One-piece quill pinion and shaft
- Heavy-duty spindle brake
- Internal coolant tank
- Two-year warranty
