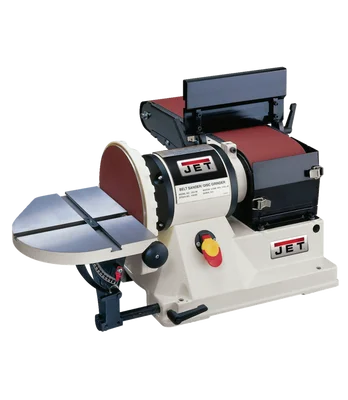

Jet JSG-96 3/4HP 1PH Benchtop 6″ x 48″ Belt / 9″ Disc Sander (708595)

Description

Jet JSG-96 3/4HP 1PH Benchtop 6″ x 48″ Belt / 9″ Disc Sander (708595) is a compact yet powerful sanding solution, combining a 9″ disc sander and a 6″ x 48″ belt sander in one machine. It offers versatility and efficiency for both hobbyists and professionals, with a robust design and innovative features that make it ideal for any workshop.

KEY FEATURES AND BENEFITS:

• Combination Design: Offers both a 9″ disc sander and a 6″ x 48″ belt sander in one compact machine.
• Powerful 3/4 HP Motor: Handles tough sanding operations on wood and metal.
• Large Cast Iron Table: Provides a stable work surface for accuracy and precision.
• Adjustable Table Tilt: Tables tilt up to 10 degrees and down to 45 degrees for sanding at various angles.
• Quick-Release Belt Tension Lever and Dust Cover: Change belts and discs easily without tools.
• Effective Dust Collection: 4″ dust port collects dust from both belt and disc.
• Exclusive Dual Thumbscrew Belt Tracking Adjustment: Keeps sanding belt aligned for consistent results.
• Graphite Covered Steel Platen: Runs cooler, extending machine and sanding belt lifespan.
• Rubber-Coated Drive Drum: Reduces belt slippage for efficient sanding.
• Built-in Handles: Facilitate easy transport around the workshop.

SPECIFICATIONS:

• Motor Power: 3/4 HP
• Motor Voltage: 115V
• Motor Amps: 11
• Belt Size: 6″ x 48″
• Belt Speed: 2258 SFPM
• Disc Diameter: 9″
• Disc Speed: 1725 RPM
• Dust Port Diameter: 4″
• Overall Dimensions: 16″ H x 29″ L x 28-1/2″ W
• Weight: 100 lbs.

HOW TO USE:

1. Preparation: Ensure the sander is unplugged and securely placed on a stable work surface. Install the desired sanding belt and disc according to the manufacturer’s instructions.
2. Adjusting the Tables: Tilt the belt and/or disc tables to the desired angle for your sanding project.
3. Belt Tracking: Adjust the belt tracking mechanism to ensure the belt runs centered on the platen.
4. Dust Collection: Connect a dust collection system to the 4″ dust port to maintain a clean workspace.
5. Sanding: Turn on the sander and gently feed your workpiece into the sanding belt or disc. Use light pressure and let the sander do the work.
6. Finishing: After sanding, turn off the sander and disconnect the dust collection system. Clean the sander and store it in a safe place.

BENEFITS OF USING Jet JSG-96 3/4HP 1PH Benchtop 6″ x 48″ Belt / 9″ Disc Sander (708595):

• Versatility for a wide range of sanding tasks.
• Powerful motor for efficient sanding.
• Durable construction for long-lasting performance.
• User-friendly features for ease of use.
• Effective dust collection for a clean workspace.

FEATURES:

• Specially designed belt guard allows full use of the 6″ belt width and length.
• Tracking adjustment knob with quick-lock handle keeps belt on track during use.
• Built-in handles for easier portability.
