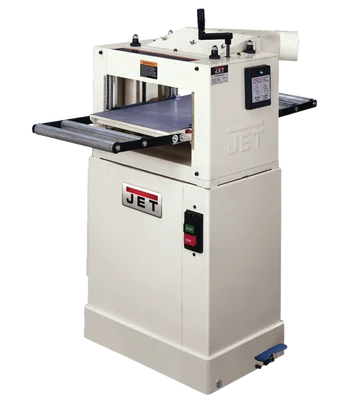

Jet JPM-13CS 1.5HP 1PH 115/230V 13″Closed Stand Planer/Molder (708524)

Description

Jet JPM-13CS 1.5HP 1PH 115/230V 13″ Closed Stand Planer/Molder (708524) is a 13-inch planer/molder engineered to elevate your woodworking projects. Whether you’re a hobbyist or a professional, this machine offers the power, precision, and flexibility to transform rough lumber into finely finished pieces with ease.

KEY FEATURES AND BENEFITS:

• Power and Precision: The 1.5 HP motor effortlessly planes and molds even hardwoods, while the precision-ground columns and sturdy cast iron construction ensure smooth operation and minimize vibration.
• Dual Voltage Convenience: Easily switch between 115V and 230V operation to match your workshop’s electrical setup, offering flexibility and convenience.
• Expanded Capacity: Accommodate workpieces up to 13 inches wide and 6-1/8 inches thick, expanding your capabilities for larger projects.
• Versatile Functionality: Switch seamlessly between planing and molding tasks with the interchangeable cutter head, which accepts over 40 standard molding knives.
• User-Friendly Design: Effortlessly adjust the table height with the top-mounted crank handle, and fine-tune your results with the two-speed gearbox for optimal feed rates.
• Enhanced Safety: The totally enclosed motor protects internal components from dust and debris, ensuring longevity and safe operation.

SPECIFICATIONS:

• Model Number: Jet 708524 JPM-13CS
• Motor: 1.5 HP, 115/230V, single-phase
• Maximum Planing Width: 13 inches
• Maximum Planing Thickness: 6-1/8 inches
• Cutterhead Speed: 4500 RPM
• Number of Knives: 3
• Dimensions: 41″H x 25″L x 24″W
• Weight: 258 lbs

HOW TO USE:

1. Preparation: Ensure the machine is securely mounted to a stable surface and the power is disconnected.
2. Table Height Adjustment: Use the crank handle to set the desired thickness of the workpiece.
3. Feed Rate Selection: Choose the appropriate feed rate (planing or molding) using the gearbox lever.
4. Workpiece Placement: Position the workpiece on the infeed table against the fence, ensuring it’s flat and secure.
5. Power On: Connect the machine to the appropriate power source (115V or 230V) and turn it on.
6. Feeding the Workpiece: Gently push the workpiece into the machine, allowing the rollers to guide it through.
7. Complete the Cut: Continue feeding until the entire length of the workpiece has passed through.
8. Power Off: Turn off the machine and wait for the cutter head to come to a complete stop before removing the workpiece.

BENEFITS OF USING THE Jet JPM-13CS 1.5HP 1PH 115/230V 13″Closed Stand Planer/Molder (708524):

• Professional-Quality Results: Achieve smooth, precise finishes on a variety of woods.
• Enhanced Efficiency: Quickly transition between planing and molding tasks.
• Increased Project Scope: Tackle larger workpieces with confidence.
• Long-lasting Durability: Robust construction ensures years of reliable performance.

FEATURES:

• Cast iron table and base
• Precision-ground columns
• Two-speed gearbox
• Adjustable feed rates
• Accepts over 40 standard molding cutter sets
• Top-mounted crank handle for easy adjustments
• Totally enclosed fan-cooled motor
• Built-in lockable casters for mobility
