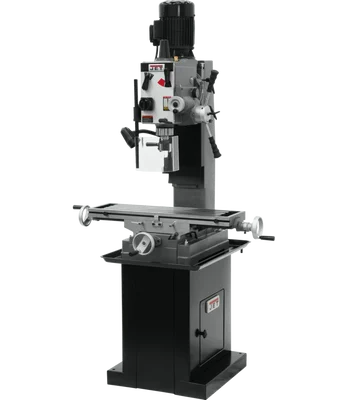

The Jet JMD-45GHPF Sq. Column Mill/Drill DP500 2-Ax DRO & X Pwrfd (351161) is a heavy-duty machine designed for high-precision drilling and milling tasks in professional workshops. Its rigid construction ensures stability and accuracy for even the most challenging jobs.
KEY FEATURES AND BENEFITS:
- Powerful and Versatile: 1.5 HP motor with 6-speed geared head delivers optimal power for various drilling and milling applications.
- Precision Control: X-axis powerfeed and Newall DP500 2-axis DRO (Digital ReadOut) ensure precise positioning and repeatable results.
- Durable Design: Square column with dovetail ways provides smooth operation and long-lasting performance.
- Head Tilt Capability: Spindle head tilts 90 degrees left and right for angular drilling needs.
- Wide Range of Capabilities: Handles drilling capacities up to 1.5 inches, end mill capacities up to 3/4 inches, and face mill capacities up to 4 inches.
SPECIFICATIONS:
- Motor: 1.5 HP, 115V/230V, single-phase
- Number of Spindle Speeds: 6
- Range of Spindle Speeds: 65 – 1,550 RPM
- Spindle Taper: R-8
- Spindle Travel: 5 inches
- Table Travel (X-axis): 20-1/2 inches
- Swing: 19-11/16 inches
- Table Size: 9-1/2 in. x 32-1/4 in.
- Overall Dimensions (L x W x H): 29 in. x 36 in. x 50 in.
- Weight: 820 lbs (approx.)
HOW TO USE:
- Assembly and Setup: Refer to the user manual for detailed assembly instructions. Secure the mill drill on a stable workbench and connect it to the appropriate power source.
- Workpiece Setup: Mount your workpiece securely on the mill drill table using clamps or a vise. Ensure proper alignment with the drill bit or milling tool.
- Selecting Speed and Feed: Choose the appropriate spindle speed and feed rate based on the material, drill bit/milling tool size, and desired results. Refer to the user manual or cutting charts for recommended settings.
- Drilling or Milling: Engage the power feed (if using) and lower the spindle gradually towards the workpiece. Use the handwheels or DRO for precise positioning and control the depth of cut with the quill feed.
- Safety: Always wear safety glasses, ear protection, and appropriate gloves when operating the mill drill. Ensure all guards are in place and the machine is turned off before making adjustments or changing tools.
BENEFITS OF USING Jet JMD-45GHPF Sq. Column Mill/Drill DP500 2-Ax DRO & X Pwrfd (351161):
- Increased Productivity: The powerful motor, powerfeed, and DRO system enable efficient drilling and milling operations.
- Enhanced Accuracy: Rigid construction, precise controls, and digital readout ensure consistent and repeatable results.
- Versatility: Handles a wide range of drilling and milling tasks with its various functionalities and capacity range.
- Durability: Built for long-lasting performance in demanding environments.
FEATURES:
- Heavy-duty square column construction
- 6-speed geared head for optimal power
- X-axis powerfeed for automated feeding
- Newall DP500 2-axis DRO for precise positioning
- Easy-to-read internal depth gauge
- R8 spindle for compatibility with various tooling
- Rapid spindle speed changes with quick-select levers
- Spindle guard and work lamp for improved safety and visibility
- Calibrated fine down feed
- Head tilts 90 degrees left and right for angular drilling
- Spacious table with T-slots for workpiece securement
