Description

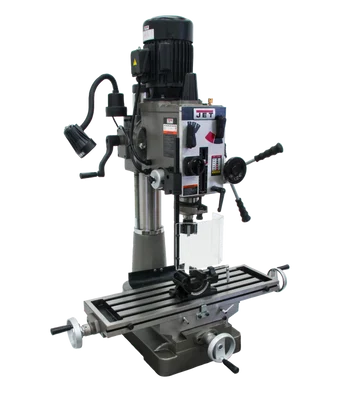

The Jet JMD-40GH 1.5HP 1PH 115/230V Geared Head Mill/Drill (351040) is a heavy-duty machine designed for precision drilling and milling tasks in workshops and professional applications.
KEY FEATURES AND BENEFITS:
- Heavy-duty construction: Ensures stability and accuracy for demanding jobs.
- 6-speed geared head: Delivers optimal power for various drilling and milling operations.
- CSA/CUS certified: Meets strict electrical safety standards.
- Spindle guard and work lamp: Enhance user safety and visibility.
- Easy-to-read depth gauge: Enables precise drilling depths.
- Tilting head (90 degrees left/right): Allows for angled drilling for complex projects.
- Fine down feed: Provides exceptional control during drilling operations.
- Rapid speed changes with gear shift levers: Improves workflow efficiency.
- Forward/reverse switch: Offers versatility for drilling and tapping applications.
- Milling table: Facilitates material movement for milling tasks.
- R8 spindle: Compatible with a wide range of milling tools.
SPECIFICATIONS:
- Drilling capacity: 1-1/2 in. mild steel
- Face mill capacity: 4 in.
- End mill capacity: 3/4 in.
- Swing: 21 in.
- Maximum distance between spindle and table: 15-3/4 in.
- Spindle taper: R-8
- Spindle travel: 5 in.
- Quill diameter: 4-1/2 in.
- Number of spindle speeds: 6
- Spindle speed range: 65, 130, 220, 480, 925, and 1550 RPM
- Table size: 32-1/4 in. x 9-1/2 in.
- Table longitudinal travel: 20-1/2 in.
- T-slots: 4, 5/8 in. x 1 in.
- Base dimensions: 24-1/4 in. x 15-15/16 in.
- Motor: 1-1/2 HP, 115/230V, 1-phase
- Overall dimensions: 28 in. x 39-1/4 in. x 42-1/2 in.
- Weight: 628 lbs.
HOW TO USE:
- Assembly: Refer to the owner’s manual for detailed assembly instructions. Secure the machine to a stable and level work surface.
- Material Setup: Secure the workpiece to the milling table using clamps or a vise. Ensure proper clearance between the tool and the workpiece.
- Speed Selection: Choose the appropriate spindle speed based on the material and desired cutting operation.
- Drilling: Lower the quill using the feed handle and engage the drill feed. Drill to the required depth using the depth gauge for reference.
- Milling: Engage the milling function and move the workpiece across the table to achieve the desired cut. Utilize the fine down feed for precise control.
- Safety: Always wear safety glasses and gloves when operating the machine. Ensure all guards are in place before starting the motor.
BENEFITS OF USING Jet JMD-40GH 1.5HP 1PH 115/230V Geared Head Mill/Drill (351040):
- Precision and Accuracy: Delivers exceptional drilling and milling results for professional applications.
- Versatility: Handles a wide range of drilling and milling tasks with ease.
- Durability: Built to withstand demanding workshop environments.
- Safety Features: Equipped with safety measures for user protection.
- Efficiency: Rapid speed changes and user-friendly controls enhance workflow efficiency.
FEATURES:
- Heavy-duty construction
- 6-speed geared head
- CSA/CUS certified
- Spindle guard and work lamp
- Easy-to-read depth gauge
- Tilting head (90 degrees left/right)
- Fine down feed
- Rapid speed changes with gear shift levers
- Forward/reverse switch
- Milling table
- R8 spindle
