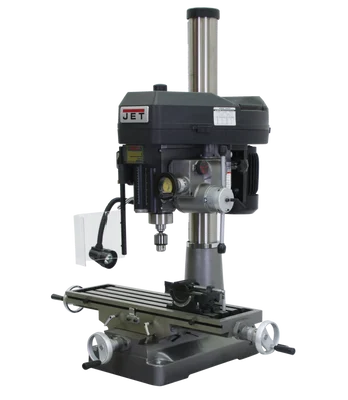

Jet JMD-18PFN Mill/Drill With Newall DP500 DRO (350135)

Description

The Jet JMD-18PFN Mill/Drill With Newall DP500 DRO (350135) combines drilling and milling functions into one versatile machine, ideal for workshops where space is at a premium. This machine offers precise control, powerful performance, and durable construction for a wide range of machining tasks.

KEY FEATURES AND BENEFITS:

• Space-Saving Versatility: Combines drilling and milling functions in one machine, optimizing workshop space.
• Precise Control: Includes NewALL DP500 DRO for accurate positioning and improved machining results.
• Powerful Performance: 2 HP motor tackles various drilling and light milling applications.
• Durable Construction: One-piece cast iron column ensures stability and reduces vibration.
• Flexible Operations: 360° swiveling head allows for multi-angle machining.

SPECIFICATIONS:

• Motor: 2 HP, 230V (single-phase)
• Spindle Taper: R-8
• Drilling Capacity: Up to 1-1/4″
• Face Milling Capacity: Up to 3″
• End Milling Capacity: Up to 3/4″
• Spindle Travel: 5″
• Table Size: 9-1/2″ x 31-3/4″
• Table Longitudinal Travel: 20-1/2″
• Worktable Weight Capacity: 400 lbs
• Number of Spindle Speeds: 12 (150-3,000 RPM)

HOW TO USE:

1. Setup: Secure your workpiece in the vise or on the table using clamps.
2. Drilling: Choose the appropriate drill bit size and install it in the chuck. Adjust the spindle speed based on the material and bit size. Lower the quill using the power downfeed or manual fine feed for precise depth control.
3. Milling: Select the desired milling cutter and install it in the spindle. Set the spindle speed and feed rate for your specific material and milling operation. Use the DRO to precisely position the cutter and workpiece for accurate machining.
4. Safety: Always wear safety glasses and appropriate cutting tools while operating the machine. Ensure the machine is properly grounded and follow safe operating procedures.

BENEFITS OF USING Jet JMD-18PFN Mill/Drill With Newall DP500 DRO (350135):

• Consolidated Functionality: Perform both drilling and milling tasks with a single machine, streamlining your workflow.
• Enhanced Accuracy: Achieve precise results with the help of the digital readout system (DRO).
• Efficient Operations: Tackle various projects with the powerful motor and flexible features.
• Durable Design: Enjoy long-lasting performance with the robust cast iron construction.
• Space-Conscious Solution: Optimize your workshop layout with this compact yet versatile machine.

FEATURES:

• Heavy-duty power downfeed with manual fine feed for precise control.
• Belt drive with multiple speed options for different applications.
• Extra-large worktable for accommodating various project sizes.
• Easy-to-read depth gauge for accurate drilling depth measurement.
• Work lamp for improved visibility during operation.
