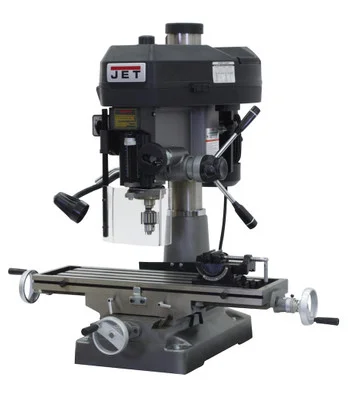

Jet JMD-18 115/230V 1PH Mill/Drill With R-8 Taper (350018)

Description

The Jet JMD-18 115/230V 1PH Mill/Drill With R-8 Taper (350018) is a versatile benchtop machine combining the functions of a drill press and milling machine. Ideal for workshops, garages, and hobbyists, it offers power and precision in a compact design.

KEY FEATURES AND BENEFITS:

• Powerful Performance: 2 HP dual voltage (115/230V) motor for drilling, milling, and light machining.
• Versatility: Performs drilling, boring, reaming, tapping, facing, slotting, and light milling operations.
• Variable Speeds: 12 settings (150-3,000 RPM) for precise control over a wide range of materials.
• Durable Construction: One-piece cast iron column ensures rigidity and stability.
• Precision Machining: R-8 spindle taper for compatibility with various tooling.
• Large Worktable: Extra-large (9-1/2″ x 32-1/4″) with T-slots for secure workpiece clamping.
• Increased Functionality: 360° swiveling head and 5″ quill travel for complex machining tasks.
• Easy Control: Positive quick-stop knob and easy-to-read internal depth gauge for precise adjustments.
• Convenient Features: Quick-slide belt cover, work lamp, and UL listed motor for safety.

SPECIFICATIONS:

• Drilling Capacity: 1-1/4″
• Face Mill Capacity: 3″
• End Mill Capacity: 3/4″
• Swing: 15-7/8″
• Max Distance Spindle to Table: 17-1/2″
• Spindle Taper: R-8
• Spindle Travel: 5″
• Quill Diameter: 3″
• Column Diameter: 4-1/2″
• Number of Spindle Speeds: 12
• Range of Spindle Speeds: 150 – 3,000 RPM
• Table Size (L x W): 9-1/2″ x 32-1/4″
• Table Longitudinal Travel: 20-1/2″
• Work Table Weight Capacity: 400 lbs.
• T-Slots Number and Size: 4, 5/8″
• T-Slot Centers: 1-13/16″
• Base Dimensions: 15-3/4″ x 23-3/4″
• Motor: 2 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H): 47″ x 40″ x 51″
• Weight: 660 lbs.

HOW TO USE:

1. Assembly: Follow manufacturer’s instructions for proper setup on a level surface.
2. Securing Workpiece: Clamp workpiece securely using T-slots and appropriate clamps.
3. Selecting Tools: Choose suitable tooling and secure it in the spindle with collet or chuck.
4. Speed and Depth Adjustments: Set spindle speed and adjust quill travel depth using controls.
5. Operation: Power on, engage feed handle, and maintain steady control during drilling or milling.
6. Safety: Always wear safety gear and use drill chuck guard for operator protection.

BENEFITS OF USING Jet JMD-18 115/230V 1PH Mill/Drill With R-8 Taper (350018):

• Versatility: Combines drilling and milling capabilities in a single, space-saving machine.
• Power and Precision: Handles a variety of materials with precise control and durability.
• Durability: Solid cast iron construction ensures stability and long-lasting performance.
• Functionality: Swiveling head, large worktable, and extensive travel distances enhance machining flexibility.
• Convenience: Features like quick-slide belt cover, work lamp, and safety enhancements improve user experience.

FEATURES:

• 2 HP dual voltage motor (115/230V)
• 12 variable speed settings (150-3,000 RPM)
• R-8 spindle taper
• One-piece cast iron column
• Extra-large worktable (9-1/2″ x 32-1/4″) with T-slots
• 360° swiveling head
• 5″ quill travel
• Positive quick-stop knob and easy-to-read internal depth gauge
• Belt cover with quick slide latch
• Work lamp
• UL listed motor
• Drill chuck guard
