Description

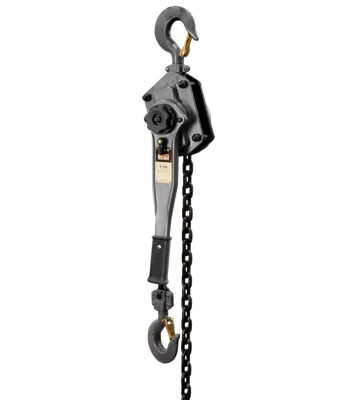

The Jet JLP-300A-15 JLP-A Series 3 Ton Lever Hoist w/15′ Lift (287502) is a reliable and durable tool designed for light to medium-duty industrial applications. This 3-ton capacity hoist features a 15-foot lift and incorporates safety and efficiency into its design.
KEY FEATURES AND BENEFITS:
- Patented Brake Wear Indicator: Ensures optimal brake performance by visually indicating when friction disks need replacement.
- Weston Style Double Pawl Brake: Provides enhanced load security by splitting the load across the ratchet gear.
- Industrial Rated Alloy Steel Hooks: Offer 360-degree rotation for easy rigging and gradual stretching to signal potential overload.
- Durable Construction: All-steel construction with grade 80 black oxide coated load chain for resistance to wear and tear.
- Efficient Operation: Needle bearing design for smooth lifting and easy free chain mechanism for quick positioning.
SPECIFICATIONS:
- Capacity: 3 tons (6600 lbs)
- Lift: 15 feet
- Headroom: 18-8/9 inches
- Handle Length: 16-1/7 inches
- Lever Pull Force: 71 lbs
- Lift per Turn: 2/3 inches
- Number of Falls: 1
- Load Chain Dimensions: 10 x 30 mm
- Hook Throat Opening: 2-1/2 inches
- Overall Width: 7-7/8 inches
- Weight: 60 lbs
HOW TO USE:
- Inspect the hoist: Check for any damage or wear and tear before use. Ensure the brake is engaged and the load chain is free of obstructions.
- Attach the load: Securely hook the load chain to the lifting point of the load.
- Operate the lever: Pull down on the lever to lift the load. Release the lever to lower the load.
- Monitor the load: Continuously observe the load during lifting and lowering. Be aware of any unusual sounds or vibrations.
- Release the load: Carefully lower the load to the desired position and disengage the brake.
BENEFITS OF USING Jet JLP-300A-15 JLP-A Series 3 Ton Lever Hoist w/15′ Lift (287502):
- Enhanced Safety: Patented brake wear indicator and Weston-style brake minimize risks.
- Increased Efficiency: Smooth operation and easy free chain mechanism improve productivity.
- Durability: All-steel construction and grade 80 load chain ensure long-lasting performance.
- Versatility: Suitable for a wide range of light to medium-duty industrial applications.
- Compliance: Meets ANSI/ASME B30.21 and HST-3 standards for safety and reliability.
FEATURES:
- All-steel construction
- Grade 80 black oxide coated load chain
- Needle bearing design
- Impact resistant
- Industrial rated alloy steel hooks
- Weston style double pawl brake
- Patented brake wear indicator
- Easy free chain design
- Ergonomic grip
- Cast steel safety latches
- Load tested to 125% of capacity
