Description

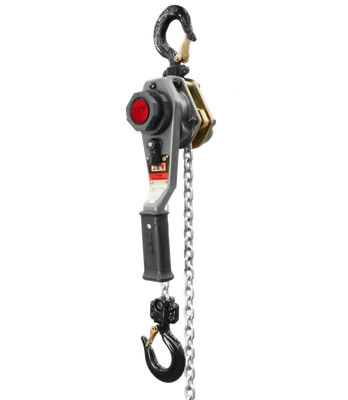

Jet JLH Series 1T Lever Hoist w/15’Lift & Overload Protection (376202) is a reliable and durable lifting tool designed for heavy-duty applications. Built with safety and efficiency in mind, this lever hoist offers a lifting capacity of 1 ton and a maximum lift height of 15 feet.
KEY FEATURES AND BENEFITS:
- Safety: Equipped with overload protection to prevent accidents and damage. The Weston style double pawl brake system ensures secure load holding.
- Durability: Constructed with all-steel materials and heat-treated components for long-lasting performance in demanding environments.
- Efficiency: Caged needle bearings provide smooth operation, while the ergonomic handle design enhances operator comfort and control.
SPECIFICATIONS:
- Capacity: 1 ton
- Lift height: 15 feet
- Overload protection: Yes
- Headroom: 11-4/5 inches
- Handle length: 9-5/8 inches
- Lever pull force: 79 lbs
- Lift per turn: 1-1/8 inches
- Number of falls: 1
- Load chain dimensions: 5.6 x 15.7 mm
- Hook throat opening: 1-1/7 inches
- Overall width: 5-2/3 inches
- Weight: 17-1/2 pounds
- Warranty: Lifetime
HOW TO USE:
- Inspect the hoist: Check for any damage or wear before use.
- Attach the load: Securely hook the load chain to the load and the hoist hook to a secure anchor point.
- Operate the lever: Pull down on the lever to lift the load. Release the lever to lower the load.
- Monitor the load: Continuously observe the load during lifting and lowering.
- Release the load: Carefully lower the load and detach the hoist hook.
BENEFITS OF USING JET JLH SERIES 1T LEVER HOIST W/15’LIFT & OVERLOAD PROTECTION (376202):
- Safe and reliable lifting solution
- Durable construction for long-lasting use
- Efficient operation with smooth lifting and lowering
- Versatile for various industrial and construction applications
- Backed by a lifetime warranty
FEATURES:
- Overload protection
- Weston style double pawl brake
- Caged needle bearings
- Ergonomic handle
- Industrial-rated alloy steel hooks
- Grade 100 plated load chain
