Description

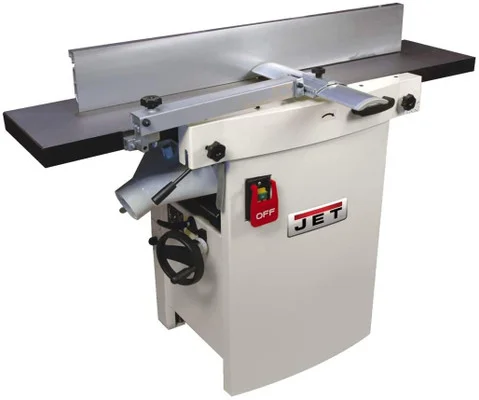

The Jet JJP-12HH 1PH 230V 3 HP 12″ Planer/Jointer w/ Helical Head (708476) is a premium combination woodworking machine designed for professional woodworkers and serious hobbyists. This machine integrates the capabilities of both a planer and a jointer, offering exceptional versatility and performance in a compact footprint.
KEY FEATURES AND BENEFITS:
- Superior Finish & Quiet Operation: Helical cutterhead with indexable carbide inserts provides a smoother finish and reduces noise compared to straight-knife cutterheads.
- Powerful Performance: 3 HP motor handles hardwoods and thick stock effortlessly, ensuring efficient operation.
- Quick Conversion: Switch between jointing and planing functions without removing the fence, maximizing workflow efficiency.
- Precision & Durability: Heavy-duty cast iron tables with machined surfaces ensure flatness and accuracy. Large handwheel allows easy and precise adjustments to the planer table.
- Increased Stability: One-piece steel closed stand with mounting tabs provides a stable foundation for smooth operation.
- Safety & Convenience: Magnetic switch enhances safety, while the built-in dust chute with a 4″ port simplifies dust collection (requires a 400 CFM dust collector, sold separately).
- Extra-Large Fence: Extruded aluminum fence with centralized controls allows easy adjustments during jointing and planing operations.
SPECIFICATIONS:
- Jointer Capacity: 12″ wide
- Planer Capacity: Up to 12″ wide by 6″ thick (depending on number of passes)
- Jointer Table Size: 55″ x 12″
- Fence Size: 43″ x 6″
- Cutterhead Speed: 5500 RPM
- Cutterhead Diameter: 2¾”
- Table Height: 33½”
- Dust Port Diameter: 4″
- Dust Collection Minimum CFM Required: 400 CFM
- Motor Power: 3 HP
- Motor Voltage: 230V (single-phase)
- Motor Amps: 12.5 A
- Dimensions: 40″ H x 34″ W x 55″ L
- Weight: Approximately 800 lbs (consult manual for confirmation)
HOW TO USE:
- Jointing:
- Raise the jointer table to the desired height based on the material thickness.
- Set the fence parallel to the cutterhead using included gauges.
- Power on the machine and ensure proper dust collection.
- Feed boards with the grain over the jointer table, applying light pressure.
- Repeat until achieving the desired flatness.
- Planing:
- Set the desired thickness on the planer table using the handwheel.
- Raise the outfeed table to match the planned thickness.
- Power on the machine and ensure proper dust collection.
- Feed boards with the grain through the planer table, maintaining even pressure.
- Repeat passes until reaching the desired thickness.
BENEFITS OF USING Jet JJP-12HH 1PH 230V 3 HP 12″ Planer/Jointer w/ Helical Head (708476):
- Achieve professional-quality flat surfaces and uniform thickness./li>
- Save space and money with a versatile 2-in-1 machine.
- Experience quieter operation and smoother finishes with the helical cutterhead.
- Increase efficiency with quick changeover between jointing and planing.
- Enjoy the durability and precision of cast iron tables and a heavy-duty steel stand.
FEATURES:
- Helical cutterhead with indexable carbide inserts
- 3 HP motor
- Quick changeover between jointing and planing
- Heavy-duty cast iron tables with machined finish
- Large handwheel for planer table adjustments
- Extruded aluminum fence with centered controls
- One-piece steel closed stand with mounting tabs
- Magnetic switch for safety
- Built-in dust chute with 4″ port
