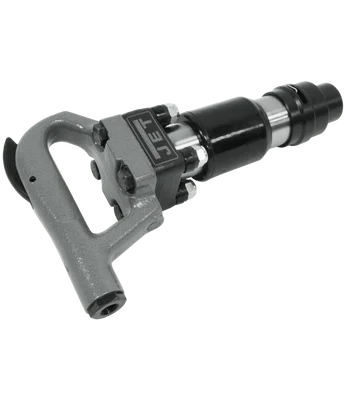

Jet JCT-3622 4″ 4-Bolt Chipping Hammer w/ Round Shank (550622)

Description

Jet JCT-3622 4″ 4-Bolt Chipping Hammer w/ Round Shank (550622) is a heavy-duty tool designed for efficient demolition, concrete removal, and other chipping applications. Built with a robust 4-bolt design, it offers exceptional strength and durability to handle demanding tasks.

KEY FEATURES AND BENEFITS:

• 4-Bolt Design: Provides enhanced strength and durability for heavy-duty applications.
• Ergonomic D-Handle: Ensures comfortable and secure grip during operation.
• Round Shank: Compatible with standard chisels and retainers for versatility.
• Heat-Treated Cylinder and Piston: Improves tool lifespan and performance.
• Heavy-Duty Valve Design: Delivers reliable and consistent air flow.
• Easy Serviceability: 4-bolt backhead allows for quick and easy maintenance.
• Includes Standard Type Retainer: For secure chisel attachment.

SPECIFICATIONS:

• Model: JCT-3622
• Stroke: 4 inches
• Shank: Round
• Air Consumption: 30 CFM
• Blows Per Minute: 1700
• Bore Size: 1-1/8 inch
• Noise Level: 96 dBA
• Overall Length: 16.08 inches
• Weight: 23 pounds
• Warranty: 2 years

HOW TO USE:

1. Inspect the Tool: Before use, carefully examine the chipping hammer for any damage or wear.
2. Connect Air Hose: Securely connect the air hose to the chipping hammer’s air inlet.
3. Choose Chisel: Select the appropriate chisel for the task at hand and securely attach it to the chipping hammer using the retainer.
4. Turn On Air Compressor: Start the air compressor and adjust the air pressure to the recommended level.
5. Grip the Handle: Hold the chipping hammer firmly with both hands, ensuring a secure grip on the D-handle.
6. Start Chipping: Begin chipping by applying steady pressure and controlled movements.
7. Safety Precautions: Wear appropriate safety gear, including eye protection, ear protection, and a dust mask. Maintain a firm grip on the tool at all times.

BENEFITS OF USING JET JCT-3622 4″ 4-BOLT CHIPPING HAMMER W/ ROUND SHANK (550622):

• Increased Efficiency: Powerful performance for faster task completion.
• Improved Durability: Built to withstand demanding jobsite conditions.
• Enhanced Comfort: Ergonomic design reduces user fatigue.
• Versatile Applications: Handles a wide range of chipping tasks.
• Easy Maintenance: Quick and simple service for extended tool life.

FEATURES:

• 4-bolt design
• Ergonomic D-handle
• Round shank
• Heat-treated cylinder and piston
• Heavy-duty valve design
• Easy serviceability
• Includes standard type retainer
