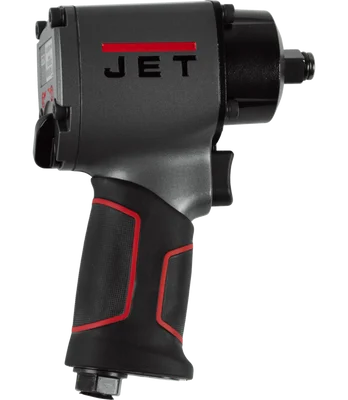

Jet JAT-107 10000 RPM 1/2 Inch Compact Impact Wrench (505107)

Description

The Jet JAT-107 10000 RPM 1/2 Inch Compact Impact Wrench (505107) is a powerful and compact 1/2 inch impact wrench designed for demanding applications. Part of the R8 series, it’s built to withstand daily, 8-hour use while delivering exceptional performance and comfort.

KEY FEATURES AND BENEFITS:

• Powerful: Delivers 960 ft-lbs maximum breakaway torque and 500 ft-lbs maximum torque for efficient work.
• Compact: Its 4-5/7 inch design allows access to tight spaces.
• Comfortable: The ergonomic grip reduces hand fatigue, while the lightweight aluminum construction makes it easy to handle.
• Durable: Built with a twin hammer impact mechanism for balanced power and long-lasting performance.
• Versatile: Three-position forward and reverse power settings for various tasks.

SPECIFICATIONS:

• Square Drive: 1/2 inch
• Working Torque: 25-350 ft-lbs
• Maximum Torque: 500 ft-lbs
• Maximum Breakaway Torque: 960 ft-lbs
• Free Speed: 10,000 RPM
• Blows Per Minute: 1,500 BPM
• Air Consumption: 5 CFM
• Air Inlet: 1/4 inch NPT
• Air Hose: 3/8 inch ID
• Air Pressure: 90 PSI
• Weight: 3-2/5 lbs

HOW TO USE:

1. Prepare the Tool: Connect the air hose to the 1/4 inch NPT air inlet. Ensure the air compressor is turned on and set to 90 PSI.
2. Select the Desired Setting: Choose between the three forward and reverse power settings based on the task.
3. Grip the Tool: Hold the wrench firmly with both hands, ensuring a secure grip.
4. Start the Impact: Pull the trigger to activate the impact wrench.
5. Control the Tool: Apply steady pressure while using the wrench. For delicate work, use lower power settings.

BENEFITS OF USING JET JAT-107 10000 RPM 1/2 INCH COMPACT IMPACT WRENCH (505107):

• Power: Provides high torque and efficient performance for various applications.
• Compact Size: Allows for use in tight and hard-to-reach spaces.
• Comfort: Reduces hand fatigue with an ergonomic grip and lightweight construction.
• Durability: Features a twin hammer impact mechanism for long-lasting use.
• Versatility: Offers three power settings for different tasks.

FEATURES:

• Twin hammer impact mechanism
• Ergonomic grip
• Lightweight aluminum construction
• 3-position forward and reverse power settings
• 2-year warranty
