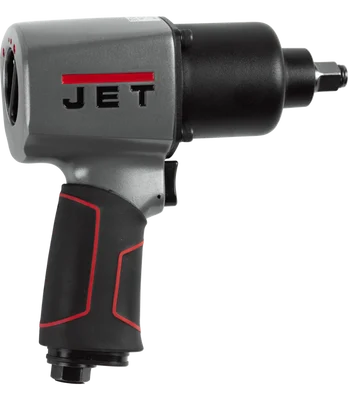

Jet JAT-104 1/2″ Impact Wrench (505104)

Description

The Jet JAT-104 1/2″ Impact Wrench (505104) is a powerful and versatile tool designed to handle a wide range of tasks. Its compact, lightweight aluminum construction makes it easy to maneuver, while its powerful twin hammer impact mechanism delivers up to 900 ft-lbs of maximum breakaway torque.

KEY FEATURES AND BENEFITS:

• Powerful: Delivers 900 ft-lbs of maximum breakaway torque for efficient work.
• Lightweight: Aluminum construction reduces user fatigue.
• Versatile: 3-position forward power settings for various applications.
• Comfortable: Ergonomic grip for better control and reduced vibration.
• Durable: Built to last with a twin hammer impact mechanism.

SPECIFICATIONS:

• Size: 1/2″
• Length: 22.1 cm
• Width: 20.6 cm
• Height: 7.6 cm
• Weight: 2971 g (6.52 lbs)
• Air Consumption: 6 CFM
• Air Inlet: 1/4 NPT
• Blows Per Minute: 1300
• Free Speed: 9000 RPM
• Min. Air Hose: 3/8 ID
• Sound Power: 98 dB(A)
• Sound Pressure: 87 dB(A)
• Vibration Value: 12 m/s²
• Warranty: 2 years
• Working Torque: 50-700 ft-lbs

HOW TO USE:

1. Connect the air hose: Connect the air hose to the 1/4″ NPT air inlet.
2. Select the desired power setting: Adjust the control lever to choose the appropriate power setting.
3. Hold the impact wrench: Firmly grip the impact wrench and align the socket with the fastener.
4. Activate the impact wrench: Pull the trigger to start the impact wrench.
5. Stop the impact wrench: Release the trigger to stop the impact wrench.
6. Reverse the direction: Switch the control lever to the reverse position to change the direction.

BENEFITS OF USING JET JAT-104 1/2″ IMPACT WRENCH (505104):

• Increased efficiency due to its powerful torque.
• Reduced user fatigue thanks to its lightweight design.
• Versatility to handle various tasks with adjustable power settings.
• Improved comfort with the ergonomic grip.
• Durability for long-lasting performance.

FEATURES:

• Aluminum construction
• Twin hammer impact mechanism
• 3-position forward power setting
• Ergonomic grip
• 1/2″ square drive
