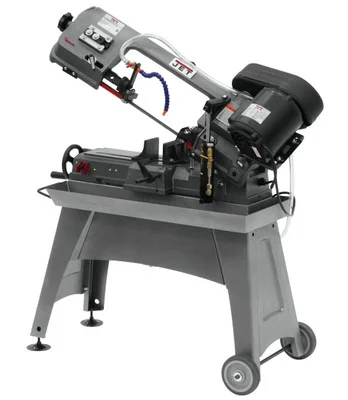

Jet J-3230 5×8″ Wet Cutting Horizontal Bandsaw (414453)

Description

Jet J-3230 5×8″ Wet Cutting Horizontal Bandsaw (414453) is a reliable and efficient metal cutting tool designed for precision and durability. With its powerful 1/2 HP motor and advanced features, this bandsaw is perfect for both professional and DIY workshops.

KEY FEATURES AND BENEFITS:

• Precise Cuts: Adjustable hydraulic feed system ensures consistent and accurate cuts.
• Smooth Operation: Ball bearing guides reduce friction and vibration for smooth cutting.
• Durable Construction: Heat-treated steel worm gear and bronze drive gear provide long-lasting performance.
• Safety First: Automatic shut-off at the end of each cut for added safety.
• Easy Mobility: Built-in wheels and handle allow for convenient transportation.
• Efficient Cooling: Coolant system prevents overheating and extends blade life.

SPECIFICATIONS:

• Part Number: 414453
• Motor: 1/2 HP, 115V, 1 Ph, 1725 RPM
• Cutting capacity:
  • Round at 45 degrees: 4 inches
  • Round at 90 degrees: 5 inches
  • Rectangle at 90 degrees: 7-1/2 x 5 inches
  • Square at 90 degrees: 5 inches
• Blade size: 1/2 x .025 x 68-1/2 inches
• Blade speeds: 85, 125, 200 SFPM
• Bed height: 23-1/2 inches
• Blade length: 7-1/2 inches
• Overall dimensions: 37 x 16 x 37 inches
• Weight: 134 pounds

HOW TO USE:

1. Set up: Place the bandsaw on a stable, level surface. Ensure proper ventilation.
2. Blade Installation: Carefully install the provided 1/2 inch carbon steel blade according to the user manual.
3. Material Clamping: Securely clamp the workpiece in the vise.
4. Adjustments: Set the desired cutting depth, blade speed, and coolant flow.
5. Cutting: Engage the hydraulic feed and begin cutting. Allow the automatic shut-off to activate after each cut.
6. Cleaning: Clean the bandsaw and blade after use to prevent rust and debris buildup.

BENEFITS OF USING Jet J-3230 5×8″ Wet Cutting Horizontal Bandsaw (414453):

• Increased Efficiency: Precise cuts and smooth operation save time and material.
• Improved Safety: Automatic shut-off and coolant system protect the user and machine.
• Versatility: Handles various materials and cutting tasks.
• Durability: Built with high-quality components for long-lasting performance.
• Convenience: Easy to use and maintain.

FEATURES:

• Adjustable hydraulic feed system
• Adjustable ball bearing guides
• Heat-treated steel worm gear and bronze drive gear
• Automatic shut-off at end of cut
• Wheel kit for easy mobility
• Eccentric shaft and ball bearing side blade guides
• Ball bearing rear blade guides
• 1/2″ carbon steel blade
• Adjustable material stop
• Coolant system included
