Jet GHB-1340A w/ Lathe Newall DP500 DRO Taper & Collet Closer (323104)

Description

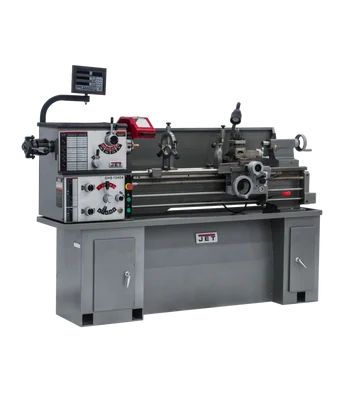

Jet GHB-1340A w/ Lathe Newall DP500 DRO Taper & Collet Closer (323104) is a geared head bench lathe designed for precise metalworking tasks. This versatile lathe features an enclosed gearbox for smooth, quiet operation, and precision roller bearings for tight tolerances. The D1-4 spindle mount offers secure tooling options, while hardened and ground gears ensure smooth performance.

KEY FEATURES AND BENEFITS:

• Quiet operation: Enclosed gearbox minimizes noise for a more pleasant work environment.
• Precise control: Precision roller bearings and a hardened, ground spindle deliver accurate results.
• Versatility: Gap bed design allows turning of larger diameter workpieces. Independent leadscrew and feed rod enable independent control of threading and feeding operations.
• Digital readout (DRO): The Newall DP500 DRO provides real-time position data for improved accuracy.
• Taper attachment and collet closer: Perform tapered turning and securely hold round stock for precise machining.
• Wide range of capabilities: Delivers 8 speed ranges (70-2000 RPM), 40 feed rates, and handles various thread pitches (inch and metric).

SPECIFICATIONS:

• Size: 13″ swing over bed x 40″ distance between centers
• Spindle speeds: 8 (range: 70 – 2,000 RPM)
• Motor: 2 HP, 230V, 1Ph
• Swing over cross slide: 7-25/32 inches
• Swing through gap: 18-3/4 inches
• Spindle bore: 1-3/8 inches
• Number of longitudinal and cross feed rates: 40
• Range of longitudinal feeds (IPR): .0018 – .0374
• Range of cross feeds (IPR): .0006 – .0130
• Number of inch threads: 38
• Range of inch threads (TPI): 3-1/2 – 80
• Number of metric threads: 23
• Range of metric threads: .45 – 10
• Max tool size (in.): 5/8 x 5/8
• Overall dimensions (L x W x H) (in.): 79 x 28-1/2 x 30
• Weight: 1,154 lbs

HOW TO USE:

1. Set up the lathe: Secure the lathe to a sturdy workbench and ensure proper electrical connection (consult a qualified electrician if needed). Install the desired tooling (chuck, collet closer, etc.) onto the spindle mount.
2. Mount your workpiece: Secure the workpiece between the centers or in the chuck, depending on the machining operation.
3. Adjust speed and feed: Select the appropriate spindle speed and feed rate based on the material and desired outcome. Utilize the DRO for precise positioning.
4. Engage the clutch and start machining: Engage the clutch lever to initiate spindle rotation. Use the carriage handles to move the cutting tool along the desired path while the workpiece spins.
5. Monitor and adjust as needed: Continuously monitor the machining process and make adjustments to speed, feed, or tool position as necessary to achieve the desired results.

BENEFITS OF USING Jet GHB-1340A w/ Lathe Newall DP500 DRO Taper & Collet Closer (323104):

• Achieve precise metalworking results: The combination of a rigid bed, precision bearings, and a digital readout ensures accurate machining.
• Handle a variety of projects: The versatile design with a gap bed and various tooling options allows tackling diverse metalworking tasks.
• Smooth and quiet operation: The enclosed gearbox minimizes noise for a more comfortable work environment.
• Increased efficiency: The independent leadscrew and feed rod enable simultaneous threading and feeding operations.

FEATURES:

• Enclosed gearbox for quiet operation
• Precision roller bearings for tight tolerances
• D1-4 spindle mount
• Hardened and ground gears
• Gap bed design for larger work
• Independent leadscrew and feed rod
• Digital readout (Newall DP500)
• Taper attachment for tapered work
