Description

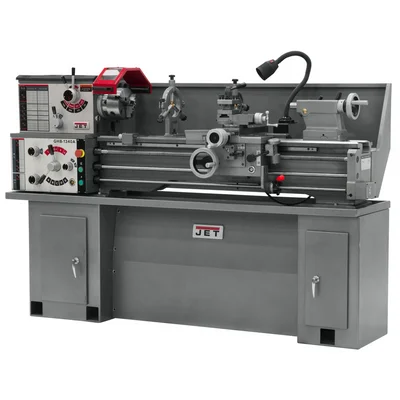

The Jet GHB-1340A-TAK 2HP/1PH Lathe w/ Taper Attachment Installed (321119) is a 13″ x 40″ geared head bench lathe with a taper attachment, designed to deliver precision and versatility for both hobbyists and professionals. It boasts an enclosed gearbox for quiet operation, a hardened and ground bed for accuracy, and a wide range of threading and feed capabilities. With its included accessories, it’s ready to tackle a variety of projects right out of the box.
KEY FEATURES AND BENEFITS:
- Enclosed Gearbox: Ensures smooth, quiet operation and facilitates fast, easy speed changes.
- Precision Ground Spindle: The D1-4 spindle is precision ground for accuracy and supported by high-quality tapered roller bearings.
- Hardened and Ground Components: The bedways, gears, and spindle are hardened and ground for maximum precision and durability.
- Versatile Threading and Feeding: The gearbox offers a wide range of inch and metric threading and feed capabilities without requiring gear changes.
- Taper Attachment: Enables the creation of tapered workpieces for expanded versatility.
- Gap Bed: Provides clearance for larger diameter workpieces.
- Complete Package: Includes a 3-jaw and 4-jaw chuck, faceplate, steady and follow rest, tool post, and more, for immediate use.
SPECIFICATIONS:
- Swing Over Bed: 13″
- Swing Over Cross Slide: 7-25/32″
- Swing Through Gap: 18-3/4″
- Distance Between Centers: 40″
- Spindle Bore: 1-3/8″
- Spindle Mount: D1-4
- Spindle Speeds: 8 (70 – 2,000 RPM)
- Threading Range (Inch): 3 1/2 – 80 TPI
- Threading Range (Metric): 0.45 – 10
- Motor: 2 HP, 230V, 1Ph
HOW TO USE:
- Setup: Securely mount the lathe on a sturdy bench or stand.
- Workpiece Preparation: Prepare your workpiece by facing and centering it.
- Chuck Selection: Choose the appropriate chuck (3-jaw or 4-jaw) for your workpiece.
- Tool Selection: Select the correct cutting tool for the desired operation (turning, facing, threading, etc.).
- Speed and Feed Selection: Consult the lathe’s manual or a reference chart to determine the appropriate speed and feed rate for your material and operation.
- Operation: Carefully engage the tool with the workpiece and perform the desired operation, making adjustments to the tool’s position and feed rate as needed.
- Safety First: Always wear safety glasses and follow safe operating procedures when using the lathe.
BENEFITS OF USING THE Jet GHB-1340A-TAK 2HP/1PH Lathe w/ Taper Attachment Installed (321119):
- Precision: Hardened and ground components ensure accurate results.
- Versatility: Wide range of threading and feed capabilities, plus a taper attachment.
- Ease of Use: Enclosed gearbox and intuitive controls simplify operation.
- Durability: Built with high-quality materials for long-lasting performance.
- Value: Includes a comprehensive set of accessories for a complete package.
FEATURES:
- Enclosed gearbox design
- Fast, easy speed changes
- Hardened and ground gears
- Precision ground D1-4 spindle
- Headstock lubrication system
- V-way bed design
- Gap bed section
- Independent lead screw and feed rod
- Backlash elimination on compound and cross slide
- Offset tailstock for taper turning
- Oil pan and tolerance test certificate included
- Wide range of included accessories
