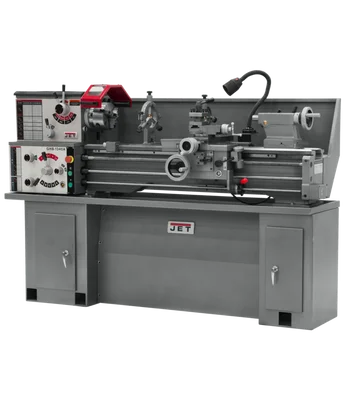

Jet GHB-1340A Lathe with Collet Closer and Tak (321129)

Description

Jet GHB-1340A Lathe with Collet Closer and Tak (321129) is a geared head bench lathe designed for precision metalworking. With a 13-inch swing over the bed and an 8-inch gap bed section, it can handle a wide range of projects. The enclosed gearbox ensures smooth, quiet operation, while the D1-4 spindle and hardened ground gears provide accuracy and durability.

KEY FEATURES AND BENEFITS:

• Enclosed Gearbox: Delivers smooth, quiet operation for a more pleasant work environment.
• D1-4 Spindle: Precision ground for accuracy and supported by high-quality tapered roller bearings for demanding tasks.
• Hardened and Ground Gears: Ensures smooth operation and minimizes wear for long-lasting performance.
• Wide Range of Threading and Feeding: Achieve various threading and feeding capabilities without needing to change gears, saving time and effort.
• Gap Bed Section: Accommodates larger diameter workpieces for increased versatility.
• Additional Features: Independent leadscrew and feed rod, apron-mounted spindle actuation control, compound and cross slide with backlash elimination, and more.

SPECIFICATIONS:

• Swing over Bed: 13 inches
• Swing over Cross Slide: 7-25/32 inches
• Swing Through Gap: 18-3/4 inches
• Length of Gap: 8 inches
• Distance Between Centers: 40 inches
• Spindle Bore: 1-3/8 inches
• Spindle Mount: D1-4
• Spindle Taper W/ Sleeve: MT-5 (MT-3)
• Number of Spindle Speeds: 8
• Range of Spindle Speeds (RPM): 70 – 2000
• Motor: 2HP, 230V, 1Ph

HOW TO USE:

1. Setup: Secure the lathe to a sturdy workbench and connect it to the appropriate power source (consult the manual for voltage requirements).
2. Mount the Workpiece: Choose the appropriate chuck or fixture to hold your workpiece securely. Center the workpiece between the centers or in the chuck.
3. Select Speed and Feed: Choose the appropriate spindle speed and feed rate based on the material and desired outcome (consult cutting charts for recommended settings).
4. Tool Selection: Select the appropriate cutting tool for your project and secure it in the tool post.
5. Start the Lathe: Engage the clutch or power switch to start the spindle rotation.
6. Machining: Move the cutting tool against the workpiece using the carriage handwheel, cross slide handwheel, and compound slide for precise control.

BENEFITS OF USING Jet GHB-1340A Lathe with Collet Closer and Tak (321129):

• Precision Metalworking: Achieve accurate results for various metalworking projects.
• Versatility: Handles a wide range of workpiece sizes and materials.
• Durability: Built with high-quality components for long-lasting performance.
• Quiet Operation: Enclosed gearbox minimizes noise levels for a more comfortable work environment.
• Time-Saving Features: Wide range of threading and feeding capabilities without gear changes.

FEATURES:

• Enclosed gearbox
• D1-4 spindle
• Hardened and ground gears
• Wide range of threading and feeding capabilities
• Gap bed section
• Independent leadscrew and feed rod
• Apron-mounted spindle actuation control
• Compound and cross slide with backlash elimination
• Offset tailstock for turning tapers
• Includes: Oil pan, tolerance test certificate, 6″ 3-jaw chuck, 8″ 4-jaw chuck, 12″ faceplate, four-way tool post, steady rest, follow rest, centers with headstock center sleeve, threading dial, and toolbox with tools.
