Description

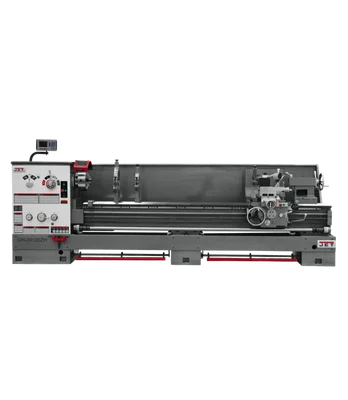

The Jet GH-26120ZH Lathe With Newall DP700 DRO (321891) is a heavy-duty machine tool designed for efficient and precise metalworking. Built with a large 4-1/8 inch spindle bore, it accommodates a wide range of workpiece sizes. Its robust construction, featuring a cast iron bed and hardened and ground ways, ensures durability and stability during operation.
KEY FEATURES AND BENEFITS:
- Large Spindle Bore: Handles larger workpieces with ease.
- Heavy-Duty Construction: Provides stability and longevity.
- Precision Machining: Hardened and ground headstock gears for accurate cuts.
- Versatile Threading: Universal gearbox allows for various thread pitches.
- Operator Comfort: Clutch-operated headstock, rapid traverse, and coolant system enhance efficiency.
- Digital Readout: Newall DP700 for precise measurements and control.
- Comprehensive Accessories: Includes toolpost, chucks, face plate, steady rests, and follow rest.
SPECIFICATIONS:
- Spindle Bore: 4-1/8 inches
- Swing Over Bed: 26 inches
- Distance Between Centers: 120 inches
- Motor: 10 HP
- Spindle Speeds: 36-1,600 RPM
- Threading Capacities: Inch and metric
- Feed Rates: Longitudinal and cross
- Dimensions: 178 x 43 x 57 inches
- Weight: 9,362 pounds
HOW TO USE:
- Setting Up: Ensure the lathe is securely mounted on a stable level surface. Connect the lathe to a power supply that meets the electrical requirements. Check the coolant system for proper fluid levels. Inspect the machine for any loose parts or damage.
- Operating the Lathe: Turn on the power switch and allow the machine to warm up. Mount the desired workpiece in the chuck or between centers. Select the appropriate spindle speed and feed rate for the material and operation. Engage the desired feed mechanism (longitudinal or cross). Use the toolpost to position the cutting tool for the desired operation. Carefully engage the spindle and begin cutting. Monitor the cutting process and make adjustments as needed.
- Safety Precautions: Always wear appropriate safety gear, including eye protection and hearing protection. Use caution when operating the lathe and avoid touching moving parts. Follow the manufacturer’s safety guidelines.
BENEFITS OF USING JET GH-26120ZH LATHE WITH NEWALL DP700 DRO (321891)
- Increased Productivity: Due to its heavy-duty construction and efficient operation.
- Improved Accuracy and Precision: With the Newall DP700 DRO.
- Versatility: In handling various workpiece sizes and materials.
- Enhanced Operator Comfort and Safety: With user-friendly features.
- Long-Lasting Performance: Backed by a two-year warranty.
FEATURES:
- Large spindle bore
- Heavy-duty construction
- Hardened and ground headstock gears
- Universal gearbox
- Clutch-operated headstock
- Rapid traverse
- Coolant system
- Halogen work lamp
- Newall DP700 DRO
- Standard accessories
